ASPHALTNESS EXTRACTION TEST APPARATUS-(ASTM D6560)

Compliance Standards:

ASTM D6560, IP 143, BS 2000 (Part 143)

Applications:

1. Determines the amount of wax free material insoluble in n-heptane, but soluble in hot toluene
2. Applicable for gas oil, diesel fuel, fuel oil, lubricating oil, bitumen, and crude petroleum, which has been topped up to an oil temperature of 260°C
3. Comprises condenser, extractor, stoppers, stirrer, funnel and evaporation dish
4. Temp. range   : ambient to 100°C (Evaporation Bath)
5. Tank capacity  : 6 liters
6. Voltage        : 220 volts, 50 Hz, Single phase, AC Supply
7. Power         : 1.5 kW
8. Weight        : 10kg
9. Complete with CLAMP & BOSSHEAD, for fitting clamp to stand.

Essential Accessories available at extra cost:

1) Digital Stopwatch @ Rs 550

2) Analytical balance 220 gram x 0.1 mg @ Rs 55000

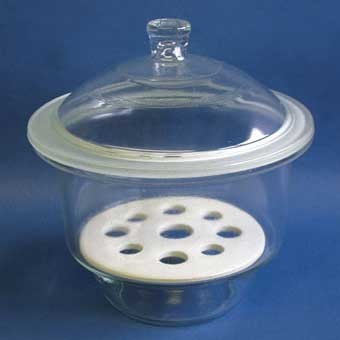

3) Desiccators 200mm @ Rs 3050
