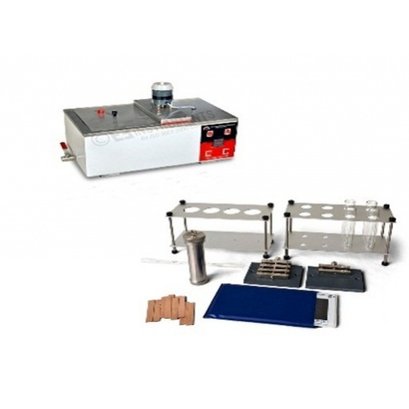

COPPER STRIP CORROSION TEST APP-DIGITAL-ASTM D130

Model Number : EIE-PTLT-105PD

The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30 mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1 4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards. Supplied with One no. each S.S. BOMB (Copper Corrosion test vessel, stainless steel with O rings, screw type cap, for use up to 100 psi), Glass Test Tube, Copper strip (Pack of 3) Indian make laminated corrosion comparison chart and a Glass Thermometer.

Complies with following International Standards :

IP 154, IS 1448 (P‑15), ASTM D130

Technical Specifications of Bath:

Compact and unique design
Aesthetical exterior appearance
Double walled water bath
Inner chamber is made of mirror polished - Stainless steel 304 grade material
Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades.
65 mm thick GLASS WOOL insulation to prevent thermal heat loss.
Temperature is controlled by Micro-Processor Based Digital PID Temperature Controller
Operating temperature: 5 °C above ambient to 100 °C
Temperature resolution: 0.1 °C
Temperature control accuracy: ± 0.5 °C
Immersion Heaters are of stainless steel material, which are fitted within the chamber
Heaters are designed such that they have Long life and high safety zone
Stirring is accompanied by stainless steel stirrer with peddle which will cause the uniform temperature distribution throughout the chamber.
Bath is designed for 4 test positions, with lid having hooks for suspending bombs. (1 No. Bomb supplied, additional at extra cost)

Supplied with following accessories:

S.S. BOMB (Copper Corrosion test vessel, stainless steel with O rings, screw type cap, for use up to 100 psi)- 01 No
Laminated Indian Color chart - 01 No
Copper Strips - 75 mm long x 1.5-3.0 mm thick x 12.5 mm wide - 03 Nos
Test tube - 25mm O.D. X 150mm Length - Capacity 55 ml - with RIM - ASTM D130 - 03 Nos
Glass Thermometer - (-20°C to 102°C x 0.2°C) Density Wide Range - (ASTM 12C / IP 64C) - 01 No
