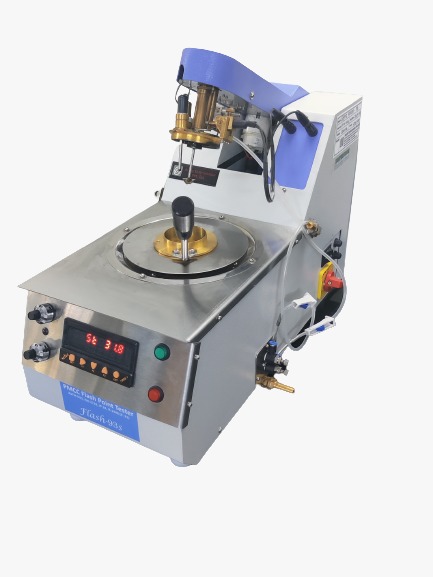

PENSKY MARTEN FLASH POINT APPARATUS- SEMI AUTOMATIC WITH HEATING & COOLING FACILITY

Name: PENSKY MARTEN FLASH POINT APPARATUS- SEMI AUTOMATIC WITH HEATING & COOLING FACILITY
Rating: 4.4 (89 reviews)

Model No: EIE-PTLT-101SAA

Detailed Specification as follows:

More Information
Techincal Specification

Compliance Standards:

IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3

Applications:

Covers the determination of flash points of Bio-Diesel & blends, Distillate Fuel (Diesel, Kerosene, Heating oil, Turbine Fuel), Lubricating oil and other homogeneous petroleum products.

Salient Features:

Semi automatic operation
Single push button for stirring & heating operation
Cooling is achieved by high speed quiet running fan
User can test Frequent samples within 5-10 minutes of interval
Electric igniter operating on 230 Volts, 50 Hz, Single Phase, AC Supply
Automatic Flash Detection
Digital sample reading display with buzzer
Sample Temperature reading is locked and displayed at Flash Point/Result
Permanently fixed sample cup lid, stirrer, sample temperature sensor, flash detector with Heating & Cooling facility.
Sample cup is removable
Supplied complete with Extra Electric igniter and Extra Sample Cup
Also, supplied complete with Test certificate, Instruction manual and other relevant documents

Initialization	Stirrer, Igniter & Igniter mechanism checked during Initialization
Cooling	High speed fan of 20 Watts @ 24 Volts
Heating elements	Band Heater of 450 watts ratings, @ 230 VAC
Heat rate control	Heat rate control with precise ten turn potentiometer
Temperature Range	40-350°C
Temperature Accuracy	± 1 °C
Temperature Resolution	0.1 °C
Stirring	Speed Control by Precise Potentiometer from 50 to 250 rpm
Ignition	Electric / Gas Igniter interchangeable
Test Mode	with a single push button (stirring & heating stops with electric igniter lightning, dipping and resume, if flash detects cooling starts wit
Lid assembly	Permanently fixed sample cup lid, Stirrer, sample temperature sensor, Flash Detector and Igniter for easy operation
Measurement
Sample temperature	Glass PT 100 , Class A, with digital indication / Thermometer interchangeable
Flash detection	Ionization Ring and Buzzer (Sample temperature reading gets lock with Flash Point heading)
Housing dimensions
Dimension Main Unit	250 mm x 450 mm x 320 mm (W x D x H)
Weight Main Unit	12 Kgs
Remote unit	150 mm x 125 mm x 120 mm (W x D x H)
Weight of remote unit	0.8 Kgs
