Compliance with following international standards:
IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3
Purpose:
This is widely used for determination for closed cup Flash Point of Fuel Oil, cut back asphalts, other viscous material and suspension of solids having a flash point above 49° C (50° C ‑ 360° C).
These test methods cover the determination of the flash point of petroleum products in the temperature range from 40 to 360° C by a manual Pensky Martens Closed Cup Apparatus.

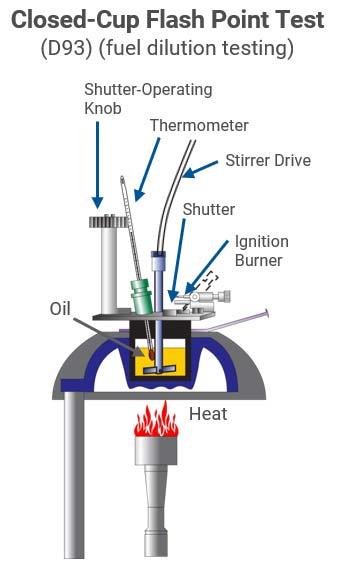

Brief Construction Details:
- The apparatus consists of a Brass Test cup with handle removable cup cover.
- It incorporates spring operated rotating shutter having oil pilot jet for ignition.
- The assembly rests in Air Bath which is covered with Dome shape metal top.
- The complete assembly rests on a round/rectangular shaped heater with energy regulator.
- The cup is fitted with insulated handle and locking arrangement near cup flange.
- Suitable for operation on 220 volts, 50 Hz, AC mains
- The motorized shaft will be available with digital temperature controller at extra cost.
AT EXTRA COST
- The Instrument can be supplied with open clip for converting close cup model to open cup model as per IP:35 at extra cost.
- IP Thermometer No. 15C and 16C available at extra cost
- Gas test jet device and "Y" tube at extra cost
Click here for working video : https://www.youtube.com/watch?v=PR7q4-ilENA
Overall Dimensions |
330 X 230 X 310 (L X W X D) mm |
Weight (Approx.) |
5.500 Kg |
