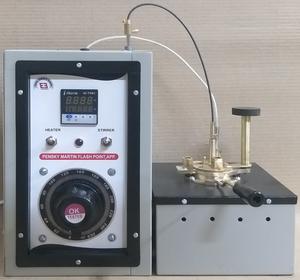

PENSKY MARTEN FLASH POINT APPARATUS-WITH VOLTAGE VARRIER, MOTORIZED STIRRER AND DIGITAL INDICATOR

Compliance Standards

IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3

Apparatus Details:

1. The complete assembly consists of following parts and accessories
2. Brass test cup with handles
3. Removable cup cover with spring operated rotating shutter having Oil Test Jet
4. Constant speed motorized stirrer with flexible shaft.
5. The assembly rests in air bath, which is covered with dome shape metal top.
6. The cup is fitted with insulated handle and locking arrangement near cup flange.
7. Fitted with electronic Digital temperature indicator and COPPER COIL TYPE Voltage Variac for precise temp. regulation
8. Suitable for operation on 220 Volts 50 cycles AC circuits.
9. These test methods cover the determination of the flash point of petroleum products in the temperature range from 40 to 360° C by a manual Pensky Martens Closed Cup Apparatus.
10. Complete with motorized stirrer.

At extra cost

1. The Instrument can be supplied with open clip for converting close cup model to open cup model as per IP:35 at extra cost.
2. IP Thermometer No. 15C and 16C available at extra cost

Click here for working video : https://www.youtube.com/watch?v=PR7q4-ilENA

suitable for operation on 220 Volts 50 cycles AC circuits.
