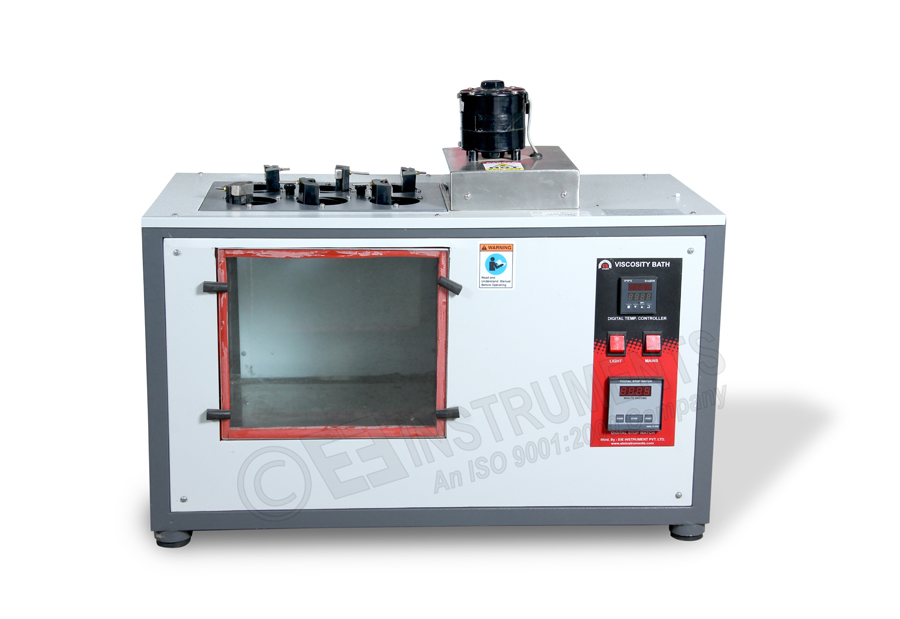

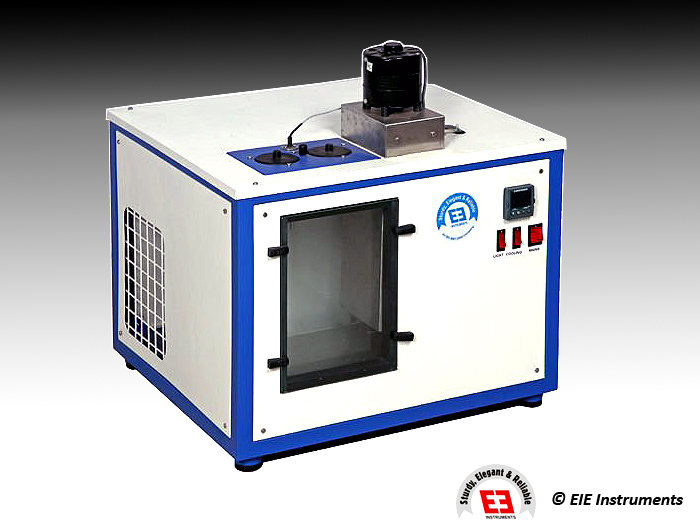

ULTRA LOW TEMP. KINEMATIC VISCOSITY BATH - 4 VISCOMETERS

Bath

Dimensions of bath

300 x 260 x 300 mm (L x W x D)

Volume of the bath

23 Liters capacity

Temperature Control

Range : -10 °C to 100 °C

Temperature controller

Microprocessor based Auto Tune PID Digital Temp controller cum indicator

Temperature sensor

PT 100 Sensor

Temperature Display

LED Display

Display resolutions

0.1 °C

Temperature Accuracy

± 0.5 °C

Heater

Immersion heater

Viewing window

Vacuum glass window for frost free viewing below 5°C range

Stirrer

1400rpm motor with stirrer for uniform Temperature

Stirrer Motor

Of reputed make

Inner chamber

Stainless Steel S.S. 304 Grade with tempered glass

Exterior body

Fabricated from mild steel material, which is powder coated in attractive shades

Illumination

PL Lamp

Accessories

Supplied complete with Viscometer holders

Accommodate

04 Nos of viscometers

Bath Media

ISOPROPYL ALCOHOL or suitable heat transfer fluid (To be supplied by user)

Electrical Supply

220 volts, 50 Hz, AC Supply

Power Consumption

2 KW

Refrigeration System

Refrigeration

Emerson/Danfoss Make refrigeration system

Compressor

Hermetically Sealed Compressor

Condenser

Fin & Tube type Air Cooled Condenser

Cascade System

For below -40°C ranges

Refrigerant

R404a
