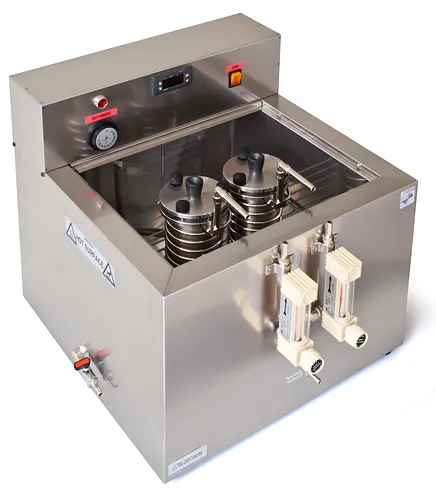

EVAPORATION LOSS OF LUBRICATING GREASE AND OIL-02 CELLS-ASTM D972, IP 183

EVAPORATION LOSS OF LUBRICATING GREASE AND OIL-02 CELLS-ASTM D972, IP 183

Model Number : EIE-PTGT-133

As per ASTM D972, IP 183. Supplied with 2 Nos. evaporation cell. IP/ASTM Glass Thermometers available at extra cost. Detailed specification as follows:

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Compliance Standards
ASTM D972, IP 183

Purpose:
This test method covers the determination of the loss in mass by evaporation of lubricating greases and oils for applications, where evaporation loss is a factor. Evaporation loss data can be obtained at any temperature in the range from 100 to 150°C (210 to 300°F).

Details
The evaporation loss test apparatus consists of Stainless Steel Bath, Flowmeters, Evaporation cell and Air supply system

  • Bench-top stainless steel bath with drain valve.
  • Double walled construction
  • Inner chamber is fabricated from Stainless Steel S.S. - 304 Grade material
  • Outer body is also fabricated from Stainless Steel material S.S. - 304 Grade material
  • Gap between inner chamber and outer body is filled with High efficiency thermal insulation to avoid thermal leakage
  • Chamber of the bath is fitted with high efficiency heating elements to achieve the precise bath temperature.
  • Bath is also fitted with motorized Electric stirrer with stainless steel shaft and propeller.
  • Bath is also equipped with Stainless steel cell support, where, Evaporation cells will be placed.
  • High precision flow-meters with needle valve will be fitted in front/side of the bath to provide controlled air flow to the evaporation cells.
  • Calibrated flow meters will supply heated air at a controlled flow rate of 2 liters/min.
  • Bath temperature will be controlled by Microprocessor based PID Temperature controller cum indicator
  • Operates on 220 Volts, 50 Hz, Single Phase, AC Supply.
  • Power consumption 2000 W.
  • Supplied complete with 02 Nos Evaporation Cells.

Evaporation cell
  • Stainless steel cylindrical body with neck flange and three cell connections for the tight cover closure double bottom with 3.17 mm orifice
  • Brass pre-heating coil with cell connections and air inlet tube
  • Stainless steel cover with neoprene gaskets fitted with 3 blocking screws
  • Central air flow-off connected to a 18/8 stainless steel tube with lower threaded junction for connection with the test cup

Supplied complete with following accessories
  1. Evaporation cell for Oil Test
  2. Evaporation cell for Grease Test
  3. Spatula

Notes
Glass thermometers shall be procured at extra cost. Refer to the optional accessories.
Technical specification
up-botton
EVAPORATION LOSS OF LUBRICATING GREASE AND OIL-02 CELLS-ASTM D972, IP 183

Temperature Range

50 °C-250 °C

Temperature Display

LED Display

Temperature controller

Microprocessor based Auto-Tube PID Digital Temperature controller cum indicator

Temperature Accuracy

± 0.5 °C or better

Temperature Resolution

0.1 °C

Temperature sensor

PT-100 Type RTD Sensor

Heater watts

1500 watts (1.5 Kw)

Power Supply

230 volts, 50 hz, single phase, ac supply
