Purpose :

This test method covers determination of the changes in the consistency, as measured by cone penetration, of lubricating greases when worked in the roll stability test apparatus. Simulates the effect of squeezing grease between the rollers and the outer race of a roller bearing.

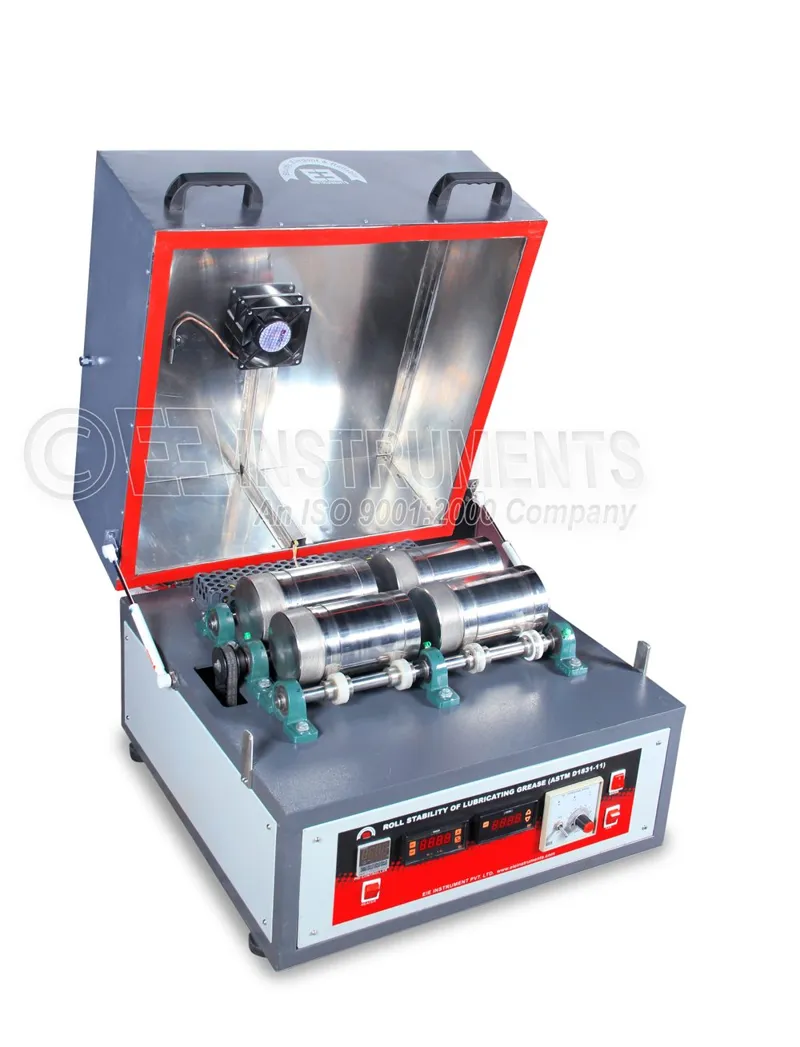

Construction Details

1. Specially designed for long runs at elevated temperature (50°C). Can go beyond 50°C on special request from customer end at extra .
2. Excellent heat uniformity due to fan assisted air circulation
3. Factory adjusted overheat cut‑off system
4. Automatic cut‑off whenever cover is lifted
5. Heaters and drive chain mechanism are shielded for operator safety.
6. Stainless steel cylinder containing the test grease
7. Fitted with stainless steel roller which rotates within the cylinder
8. Base with roller supports allowing the rotation
9. Adjustable rotational speed with RPM Display
10. Delivered with 2 rolls, 2 cylinders, tools for closing and opening cylinders
11. Insulated steel cabinet and base are finished with a durable polyurethane enamel finish

Included Accessories

1) Test Cylinders with threaded end caps and O‑ring seals

2) Test Rollers, steel, 5kg
