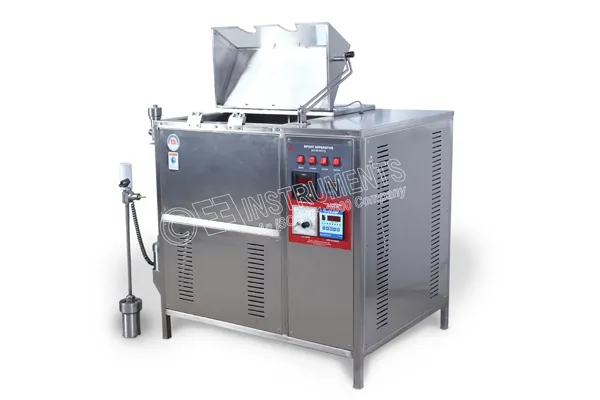

OXIDATION STABILITY FOR GREASE
Model Number : EIE-PTGT-139A
As per IP‑142 & ASTM D 942, IS 1448 (P‑94). Consists of Oxidation Oil bath, Oxidation Bombs, Dish Holder, Sample Dishes, Analog pressure gauges, Digital Temperature Controller and Thermometer.
TYPE OF OPERATION
- WITH PRESSURE GAUGE SYSTEM
- ELECTRONIC SYSTEM WITH PC SOFTWARE
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards:
ASTM D942, IP 142, IS 1448 (P-94)
Purpose:
This test method determines resistance of lubricating greases to oxidation when stored statically in an oxygen atmosphere in a sealed system at an elevated temperature under conditions of test
Summary of test method:
The sample of grease is oxidized in a pressure vessel heated to 99°C (210°F) and filled with oxygen at 110 psi (758 kPa). Pressure is observed and recorded at stated intervals. The degree of oxidation after a given period of time is determined by the corresponding decrease in oxygen pressure
Brief construction details :
Consists of Oxidation Oil bath, Oxidation Bombs, Dish Holder, Sample Dishes, Pressure Guges, Digital Temperature Controller and Thermometer.
1) Oil Heating Bath:
- Double walled Oil Bath/Aluminum Block Heating
- Exterior body is fabricated from mild steel material, Powder coated in attractive shades
- Inner chamber is fabricated from Stainless Steel Material - S.S. - 304 Grade
- Heavy insulation is provided between inner chamber and exterior body to prevent the Thermal Loss
- Chamber is fitted with efficient heating element and PT‑100 Sensor to measure the temperature
- Bath temperature is controlled by Touch Screen HMI & PLC controller.
- Equipped with an efficient stirrer to maintain uniform temperature throughout the chamber
- Fitted with a suitable arrangement for holding the Bomb (Pressure Vessel)
- Temperature control accuracy : ± 0.5 °C
- Temperature display : LCD Display
- Temperature range : 5 °C above ambient to 150 °C
- Pressure Indication : On pressure Gauge
- Supplied with over temperature protection safety
- Operates on 230 Volt, 50 Hz, Single Phase, AC Supply
2) Pressure Vessel (Oxidation Bomb):
- Oxidation vessel with body, cap, closure ring and stem, constructed from Stainless Steel material
- Stainless steel material ensures a proper rate of heat transfer.
- The interior surface is given a smooth finish to facilitate cleaning.
- Withstands working pressure of 180 psi (1241 kPa) at 99°C (210°F)
- Provided with a lead and gasket for sealing.
- Two numbers of rotating pressure vessels are provided.
- Volume without the dish holder and dishes is 185 ± 6 mL
3) Dish Holer:
- Made of Stainless Steel S.S. - 304
- 5 Places (Shelves) in the stand
4) Sample Dishes:
- Made of borosilicate glass
- Diameter : 41 mm
- No of Dishes supplied : 05 Nos
5) Thermometer :

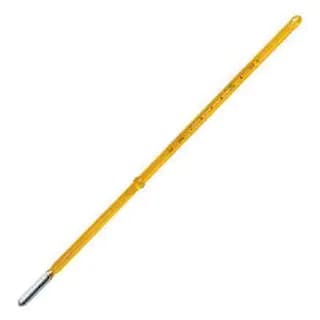

IP 24C/ASTM 22C thermometer having temperature range from 95 to 103 °C graduated in 0.2 °C intervals
6) Pressure gauges for Measurement and Analysis:
Pressure recording mechanism consists of high quality pressure gauges. Pressure gauge measures pressure inside Oxidation Bomb with accuracy of better than 0.5psi (3.45kPa) in accordance with ASTM specifications. Range : 0-160psi (0-1100kPa), graduated in 1 psi intervals. Cleaned for oxygen service. The pressure gauges can be mounted directly on the vessel stem
