Complies to following International Standard

IP 50, IS 1448 (PART 60), ASTM D 217 with geared arrangement for moving the arm with geared unit.

Silent Features

1. Compact design and rugged construction ensures long service life and facilitates transport for field applications.
2. Sturdy cast iron base provides excellent support.
3. Built‑in spirit level and leveling screws ensure proper alignment during testing.
4. Supplied with Brass cone, container and weight of 50 gm

Brief construction details

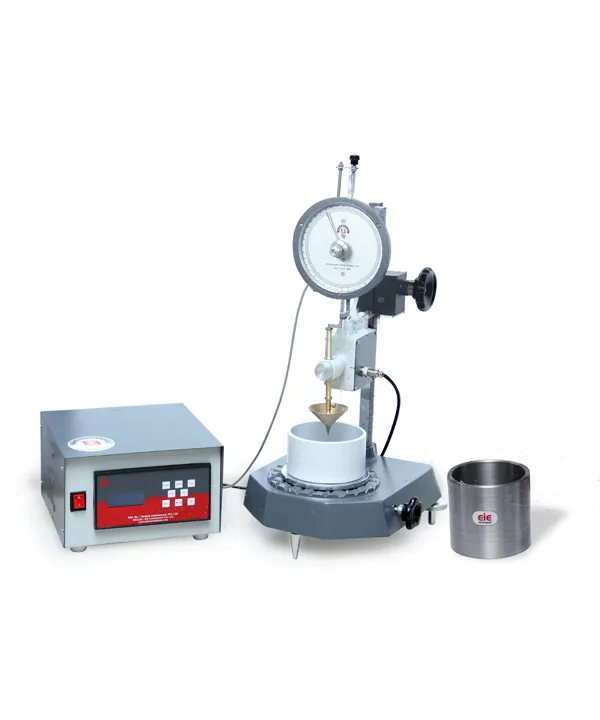

1. The apparatus consists of a cast aluminum base with an iron stand on which moves an aluminum arm.
2. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm.
3. A Penetration Cone with plunger is fitted to this rod.
4. The dial is graduated from 0‑400 in one tenth millimeter sub division.
5. Weight of the Cone and plunger match the criteria of IS/ASTM requirements.
6. The base of the instrument is also user ‑ adjustable.
7. It can be lifted up or down with the jack provided at the bottom.
8. The penetration value is measured and indicated on dial gauge.
9. Dial Gauge measures the penetration distance in 1/10th mm accuracy.

Supplied complete with following Accessories

1. Sample container of 76.5mm dia x 63.5mm height  1 No.

Optional Accessories At Extra Cost

1. Bath for Penetration test with heating only :
2. Bath for Penetration test with heating and cooling system :
3. Grease Worker Hand operated : @ Rs.
4. Grease Worker Hand operated with big Handle (for mechanical advantage) : @ Rs.
5. Grease Worker Electrically operated with single worker with electronic digital counter : @ Rs.
6. Grease Worker Electrically operated with Double worker with electronic digital counter : @ Rs.
7. Grease Cutter as per IP‑50, ASTM D 217 @ Rs.
8. Quarter scale cone with shaft as per IP‑310/75 & ASTM D 1403: @ Rs.
9. Half scale cone with shaft as per IP‑310/75 & ASTM D 1403: @ Rs.
10. Half Scale Grease Worker as per ASTM D 1403: @ Rs.
11. Penetration solid aluminum cone as per ASTM D 217
12. LVDT (Linear Variable Differential Transducer) instead of analog dial gauge. The penetration value is measured and indicated in digital format. LVDT Measures the penetration distance with 0.01 mm accuracy and displays it on the digital read‑out unit.

Spares

1. Spare Grease Container 10cm dia X 10cm height:
2. Spare Brass Cone:
3. Spare weight 50 gm :
