DEAN AND STARK APPARATUS FOR OIL-10 ML WITH HEATER - IP-74, IS-1448 (P:40)

DEAN AND STARK APPARATUS FOR OIL-10 ML WITH HEATER - IP-74, IS-1448 (P:40)

Model Number : EIE-PTLT-151-O

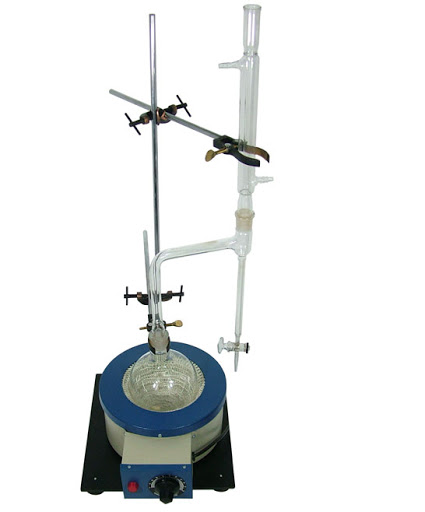

This apparatus is for estimation of moisture in lubricating oil as per IP-74, IS-1448 (P:40) & ASTM-D-95 with one 10cc(ml) receiver fitted with stop cock, 1000 ml Round Bottom Flask & clamp with stand. Complete with Heating unit

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Compliance Standards:
 IP 74 | IS 1448 (P:40) | ASTM D95 | ISO 3733 |

Applications:

Used for estimation of moisture in lubricating oil as per with one 10 cc (ml) receiver fitted with stop cock, 1000 ml Round Bottom Flask  & clamp with stand. Complete with Heating unit

Details of the apparatus:

Consist of round bottom glass still of 1000 ml capacity with a short neck, A heating mantle to accommodate the glass still. A straight reflux condenser, and a graduated glass trap (Receiver).

1) Glass still : Round bottom glass still of 1000 ml capacity with a short neck & suitable joint to accommodate the reflux tube of the trap.

2) Heating mantle :

  • Heating mantle made of aluminium sheet and proper insulating material
  • Suitable for 1000 ml RB flask.
  • Powder coated paint.
  • Fitted with energy regulator

3) Reflux condenser  : A straight reflex condenser with a length of 400 mm

4) Receiver : A graduated glass trap (Receiver) of 10 ml size of following dimensions

5) Power connection : 15 A /20 A , 230 V metal clad plugs to connect to main socket
Technical specification
up-botton
DEAN AND STARK APPARATUS FOR OIL-10 ML WITH HEATER -IP-74, IS-1448

Overall Dimensions in Inches (L x W x H)

12.2 x 11.8 x 39.4

Net weight (in kg)

4 kg
