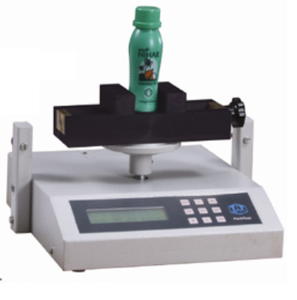

Job Application
Suitable to test
Opening & Closing Torque of regular Screwed Closures.
Salient Features
- Digital LCD Display
- External calibration
- Precise measurement of torque
- Highly accurate torque sensor
- Rigid and reliable clamping holders for zero-slip gripping support
- Adjustable clamping mechanism to hold different size of bottles
- Peak hold facility for registration of maximum closing / opening torque.
- Manual Calibration facility for user-friendly calibration at site.
- Safety lock pin to eliminate extra force on the Torque sensor.
- RS-232 to USB Communication port for PC Interface (Optional at extra cost)
- Software shall be procured at extra cost. (See optional accessories)
- Supplied complete with instruction manual.
Note :
Calibration weights to be arranged by the end user. (0.5 + 0.5 + 1 + 1 ) kg = 3 kgs in total.
|
Exterior body |
Fabricated from Mild steel material |
|
Exterior Body Paint |
Powder coated in attractive shades |
|
Display |
Digital LCD Display |
|
Capacity |
0 - 50 Kgf*cm (0-0.5 kgf*m) (5 N*m) |
|
Accuracy |
0.01 kgf-cm |
|
Resolution |
10 grams (0.01 kgf-cm) |
|
Load units |
Kg*cm / Lb*in / N*m (User adjustable) |
|
Minimum sample diameter |
25 mm |
|
Maximum sample diameter |
125 mm |
|
Controller |
Peak Load indicator with Digital readout and peak hold feature |
|
Communication |
Not applicable (Optional at extra cost) |
|
Power Supply |
230 Volt, 50 Hz, Single Phase, AC Supply |
|
Overall Dimensions in Inches (L x W x H) |
11X12X8 |
|
Weight (Approx.) |
8.00 kg per unit |
