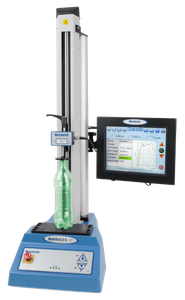

BOTTLE TOP LOAD TESTER - BOTTLE COMPRESSION TESTER

No. of screws

Single screw mechanism, Floor standing model

Exterior Body Paint

Powder coated in attractive shades

Display

Digital LCD Display

Capacity

0 - 500 Kgf (0-5000 N) (5 KN)

Load cell

‘S Type’ load cell of reputed make

Vertical Clearance

300 mm

Results displayed on screen

Load, Elongation values, Testing speed and type of test

Least count for elongation

0.01 mm

Least count for load

10 grams (0.01 kg)

Speed Range

From 0.01mm/min to 500mm/min

Load units

Kg, Newton & KN as per selection

Motor for speed variations

Servo motor of reputed make

Speed control

Through Dedicated Servo Drive

Servo Motor Rating

1 KW

Transformer Ratings

1 KVA

HMI Screen

7"/4.3" Touch screen HMI Display

Test jaws

Compression Jaws as per ISO 8113

Power Supply

230 Volt, 50 Hz, Single Phase, AC Supply
