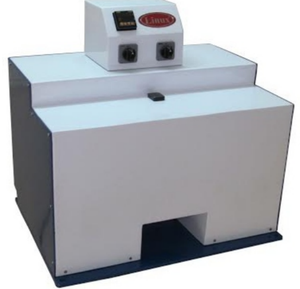

CORRUGATED FLUTTER MACHINE-CONCORA MEDIUM FLUTTER-TAPPI T809

Model No: None

Detail specification please refer after commercial part.

Compliance Standards:

TAPPI T 809, ISO 7263, SCAN P 27

Applications:

The Concora medium fluter produces specimens of corrugated board in circumstances similar to the production process. It is used for fluting a pre-cut strip of corrugated medium ready for performing the CMT (Concora Medium Test) and the CCT (Corrugated Crush Test).

Salient Features:

Easy to use
Heated rollers
Precise temperature control
Programmable temperature with digital display : 177 °C ± 2 °C
Rack & Comb are supplied as standard accessories

Diameter of rolls	228.5 mm ± 0.5 mm
Rolls dimensions	16 ± 1 mm
Number of teeth	84 Nos
Radius of teeth at peak	1.50 ± 0.1 mm
Radius of teeth at base	2.00 ± 0.1 mm
Depth of teeth	4.75 ± 0.05 mm
Distance between teeth	8.55 ± 0.05 mm
Nip Load	100 ± 10N
Rotating speed	4.5 ± 1.0 r/mm
Net Weight	75 Kgs
Gross Weight	100 Kgs
