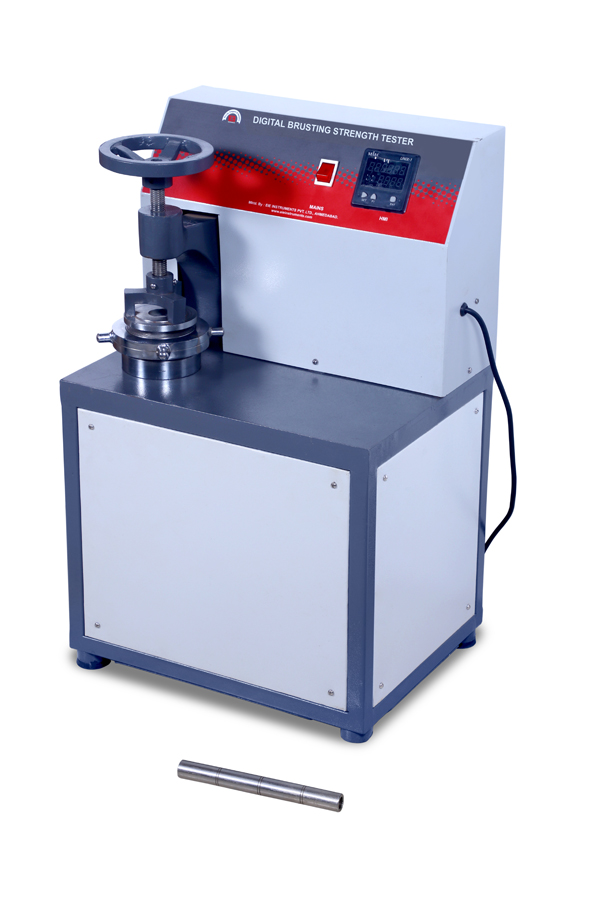

BURSTING STRENGTH TESTER

BURSTING STRENGTH TESTER

Model Number : EIE-PT-101SH25DE

None


CONTROLLING SYSTEM
  • DIGITAL ECONOMY MODEL
  • TOUCHSCREEN HMI & PLC
PRESSURE BURST CAPACITY
  • 25 KG/CM2
  • 50 KG/CM2
Add to Cart

Introducing our state-of-the-art Bursting Strength Tester, a top-tier bursting strength machine designed for precision and reliability. This advanced burst testing machine is perfect for accurately determining the bursting strength of various materials, ensuring compliance with international standards such as ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403.


Key Features:

  1. Proven and Reliable Performance: Scientifically calibrated for accuracy in our in-house calibration laboratory.
  2. Sturdy Construction: Built to last, this machine ensures long-term durability and reliable performance.
  3. Low Power Consumption: Designed for efficiency, our bursting strength machine uses minimal power without compromising on performance.
  4. Precision Motor Matching: The correctly matched motor provides a constant pumping rate, eliminating manual errors as per ASTM, BS, and ISO standards.
  5. Manual Clamping: The hand wheel clamp allows for secure and precise sample positioning.
  6. Advanced Control Systems: Our digital bursting strength tester features a PLC & Touch Screen HMI controlled model, with logical detection of sample failure.
  7. Adjustable Unit Selection: The PLC controller allows users to select between units of measurement such as Kg/cm², Bar, and PSI.
  8. Data Storage: Capable of storing the last five readings, it calculates and displays the average, maximum, and minimum values of the tests.
  9. User-Friendly Operation: Quick, easy, and accurate, designed for hassle-free use.


Salient Features of HMI & PLC Controller:

  1. Automatic Operation: No need to hold the push button to build up pressure.
  2. Automated Sample Detection: No visual inspection required, enhancing ease of use.
  3. Automatic Pressure Release: This mechanism improves diaphragm life and ensures consistent performance.
  4. Data Registration: Automatically records the breaking force within the PLC & HMI system.
  5. Soft Touch Sensitivity: The touch screen is highly responsive and easy to use.
  6. Programmable PLC Controller: Reduces human error through advanced programming capabilities.


Included Accessories:

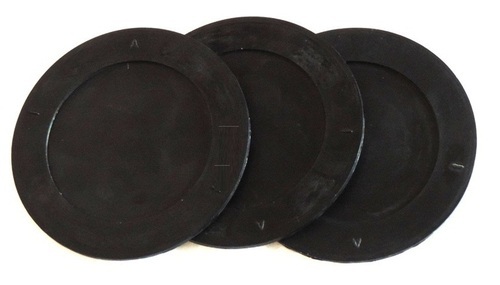

  1. Spare rubber diaphragm
  2. Standard aluminum foils for calibration and cross-verification
  3. Test report and calibration certificate



Instrument Body

Fabricated from Mild Steel Material

Paint

Powder coating in attractive shades

Body size

22” x 14” x 21” (L x W x H)

Test Fluid

Glycerin or EP 140 Gear Oil

Capacity of Test Fluid tank

250 ml

Rate of Fluid Displacement

170 ± 16 ml / Minute (For corrugated board and paper board)

Rate of Fluid Displacement

96 ± 6 ml / Minute (For Paper material)

Opening of upper clamp

31.50 mm (For corrugated board) / 30.50 mm (For paper)

Opening of upper clamp

31.50 mm (For corrugated board) / 33.10 mm (For paper)

Electric Motor

Reputed make stepper motor to yield constant rate of pumping

Pressure transducer

Honeywell / Danfoss make

Controller

3.5” Colour touch screen with PLC (Programmble logic controller)

Display

LCD Display with back light indication

Pressure Resolution

0.1 Kg/cm2

Unit Selection

Yes - Kg/cm2, Bar, PSI

Data Storage

Up to last 10 readings and further expandable (See optional accessories)

Power Supply

220 Volts, 50 Hz, Single Phase, AC Supply

Experience the convenience and precision of our digital bursting strength tester, designed to meet your testing needs with unparalleled efficiency and accuracy. Whether you are testing paper, textiles, or other materials, our bursting strength machine is the perfect choice for ensuring quality and performance.
