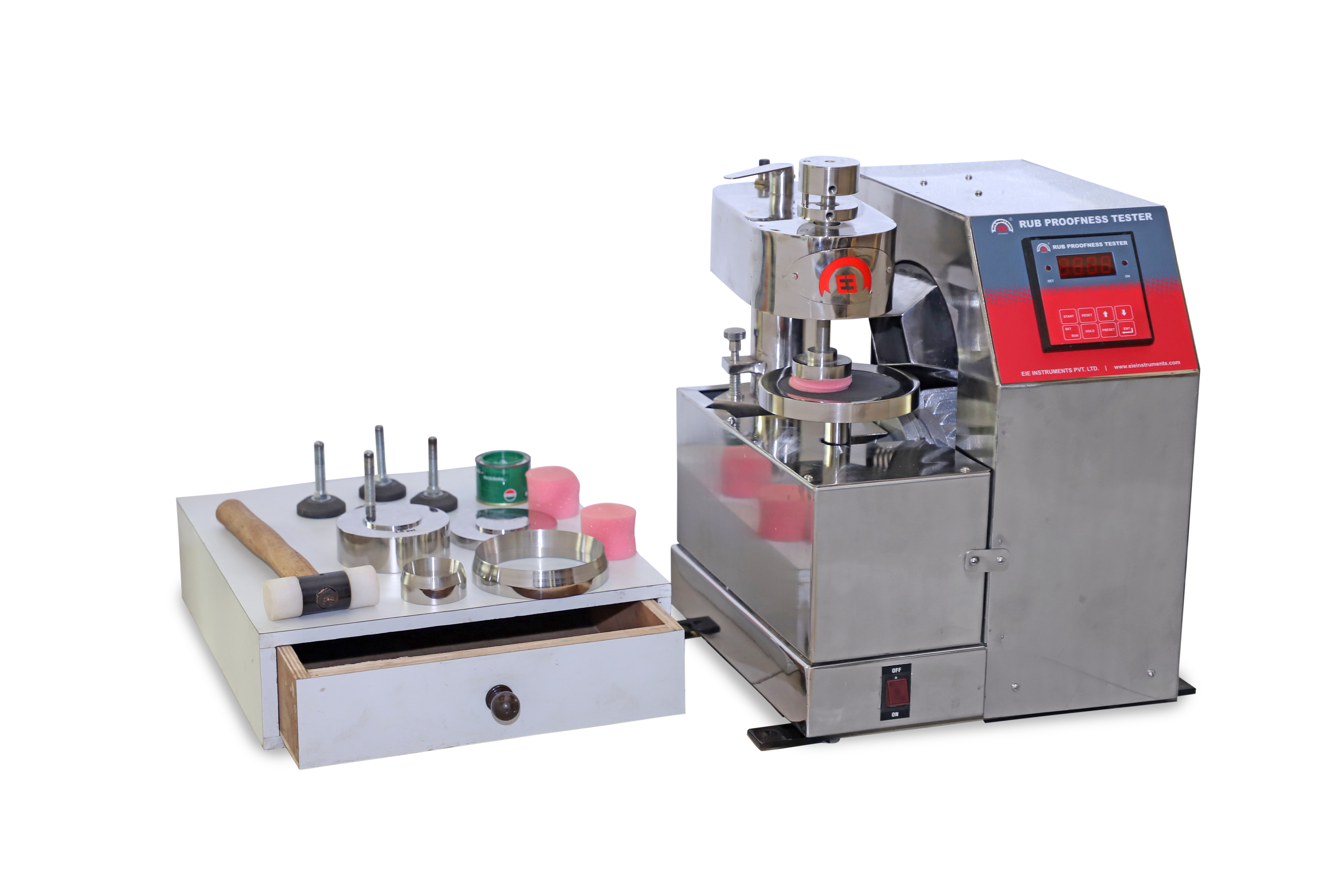

SCUFF TESTER - RUB PROOFNESS TESTER - DIGITAL - COMPLETE S.S. MODEL

SCUFF TESTER-RUB PROOFNESS TESTER-DIGITAL MODEL-AUTOSTOP AND RPM INDICATION

Model Number : EIE-PT-107D

None


Compliance Standards

BS 3110


Applications:

Scuff tester is intended to evaluate the Rub Proof-ness of prints on paper or board. It can also be used to measure / evaluate Colour Transfer from printed / coated surface during rubbing. The application can be extended for measurement of abrasion resistance of some Plastic materials / Aluminum Foils.


Operating Principle:

In this machine, 2 samples of the same substrate are rubbed against each other in the same plane, under a constant pressure of 2 PSI and at a fixed speed of 60 RPM. The number of rubs are recorded using a non-contact type digital counter.


Salient Features:

  1. Works as a great comparative of the variations in print quality between various batches or various suppliers
  2. Higher Rub Resistance = better print quality.
  3. Lower Rub Resistance = Poor print quality.
  4. The highest degree of parallelism of disc samples
  5. Accurate R.P.M. of rotating disks assured by High torque Step Synchronous motors
  6. Very Low power consumption (Less than 100w).
  7. No Gearbox. Hence, No Maintenance.
  8. Compact but Sturdy Design.
  9. Latest desktop model with push button controls
  10. Noise‑free scuff blower
  11. Non‑contact type digital counter
  12. Digital display of rubs
  13. Auto ‑ stop facility at user ‑ defined counts
  14. Digital display of speed (RPM)
  15. Standard rubbing weight = 2 psi
  16. Power supply : 230 volts AC at 50 Hz (Fluctuation free power required)



Supplied with following accessories:

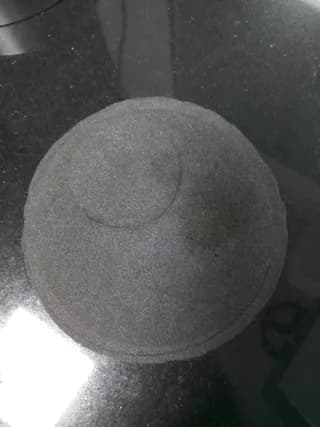

  1. Sample Marking Templates (2 Inch and 4½ Inch Sample)

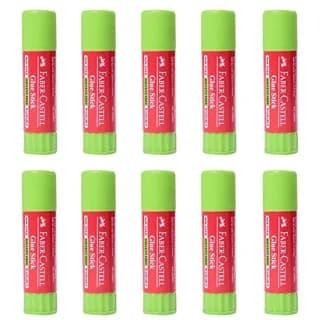

  2. Glue Stick or similar quick drying adhesive



Note :

Round sample cutter for 50 and 110mm dia specimen (for easy cutting of samples) available at extra cost



Pressure Weights

0.5, 1. 2 PSI

Number of cycles (counters)

9999

Least Count of Counter

1

Rubbing speed

60 RPM

Power

230 Volts AC at 50 Hz

Dimensions in Inches (L x W x H)

16 x 15 x 19

Net Weight

42

Display

Digital

Material of construction

S.S.

Safety Lock

Diameter of Upper Clamp

50 mm

Diameter of Lower Clamp

113 mm

Upper Motor Capacity & Lower Motor Capacity

220V, 0.3amp, 60W
