SPECTROPHOTOMETER FOR WEBSITE

SPECTROPHOTOMETER

None

MODEL
  • 301E
  • 302E
  • 304E
  • 305E
  • 1305E
  • 2305E
  • 2306E
TYPE
  • DIGITAL
  • MICROPROCESSOR BASED
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

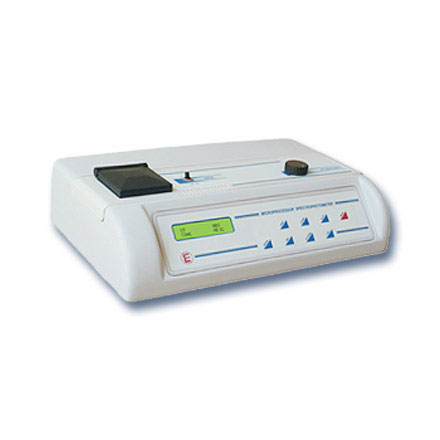

MICROPROCESSOR SPECTROPHOTOMETER: (Vis) Single beam with range 340‑960nm and facility for auto concentration, % Transmission, Absorbance and K‑factor measurements. It has 16x2 line LCD for data & wavelength display. Its sample holder accommodates glass cuvette as well as glass tubes of 10mm path length. Facility has been provided for 100 sample data storage and interface for any centronics printer. RS 232C interface can be provided on request. A set of 2 glass cuvettes of 10mm path length is provided.

SALIENT FEATURES:
  • Highly Accurate & Stable
  • Range 340 to 960 nm
  • 16X2 line backlit LCD Display
  • Printer Attachment Facility
  • Storage for 100 samples
  • RS232C Computer Interface(optional)
  • Soft Touch Membrane Keys
ACCESSORIES
  • Matched Cuvettes  : 1 Set of 2
  • Dust Cover             : 1 No
  • Instruction Manual  : 1 No.
SPECTROPHOTOMETER VARIETY: 1305E
Technical specification
up-botton
SPECTROPHOTOMETER-1305E-

Range

340 to 960 nm

Resolution

0.1%T,Abs :0.001, Conc.1

Output

0% to 100%, Abs: 0 to 1.999, Conc.:0 to 19999

Detector

Silicon Photodiode

Light Source

6V,10W,Tungsten Halogen Lamp

Monochromator

600 lines/mm holographic grating

Sample Holder

10 mm glass cuvettes

Spectral Bandwidth

<5nm

Wave Lenght

1nm

Resolution

Wave Length

± 1nm

Accuracy

Repeatability

± 2nm

Display

16x2 line alphanumeric backlit LCD display

Operating Temperature

5' to 45'C

Range

Power

230V ± 10% AC,50Hz

Dimension

L 475X B 285 X 130 mm (Approx.)

Weight

8.5 Kg.(Approx.)


Accessories
up-botton
Spares
up-botton
