As per IS:1448(Part 6) / IS:1350 (Part 2).

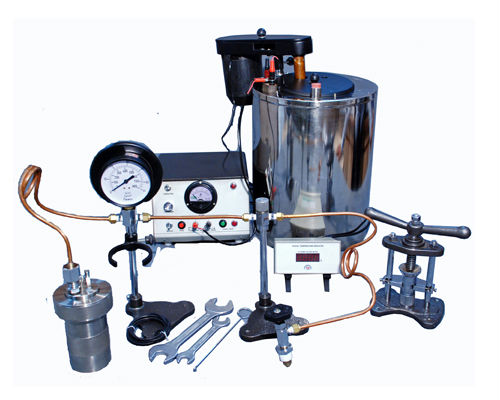

The system will consist of the following parts and standard accessories along with instruction manual.

1. Calorimeter vessel with bomb support & insulating base - 01
2. Water Jacket - 01
3. Combined lid for calorimeter vessel & water jacket - 01
4. Stirrer - 01 set
5. Connecting lead for calorimeter bomb - 01 set
6. Fine adjustment valve with built in pressure gauge - 01
7. Connecting tube to connect bomb, pressure gauge and fine regulating valve - 01
8. Safety Relief Valve fitted on gas filling tube adapter - 01
9. Pellet Press - 01
10. Spanner for Oxygen tube connection - 01
11. Ignition Wire - Nichrome - 01 Roll of 5 meter
12. Cotton Thread - 01 Roll
13. Stand for Bomb Lid - 01
14. Hook for Lifting Bomb - 01
15. Crucible SS  - 01
16. Gas Release Valve - 01
17. Bomb Firing Unit - 01 Set
18. Differential Type Digital Thermometer complete with sensor -01 No
19. O-ring for bomb & valve - 01 set each
20. Schrader Valve with Key - 01 each
21. Standard Benzoic Acid - 01 Bottle

Salient Features of Microprocessor based controller

1. Eliminates manual calculations
2. Microprocessor based controller executes automatic calculations of Calorific Value
3. Automatic measurement and calculation of CALORIFIC VALUE / WATER EQUIVALENT
4. 3.5 DIGIT LED display.
5. Keypad for Menu driven settings of different parameters
6. Automatic measurement and mathematical calculation of the calorific value/Water Equivalent; which eliminates the requirement of operator to be continuously present to note the maximum temperature rise & to do the calculations manually.
7. Weight of tablet can be fed through keypad by user.
8. Water equivalent settable through keypad by user.
9. Automatic calculation for Sample Test or Water Equivalent Test from maximum temperature rise value.
10. Sensor open detection.
11. Fuse wire open detection.
12. Type of test is selectable
13. Resolution of 0.001°C can be provided at extra cost of @ Rs 40,000.00

Pre-Installation Requirements for all Bomb Calorimeters to be arranged by you:

1. Digital Top Pan Balance (0.0001 gm.)
2. 2 KVA UPS with Batteries (30 min backup).
3. RO (50 liter) approx.
4. Oxygen Cylinder 99.9% Purity (47L, minimum 70 kg/cm2 pressure).
5. Clean Dust Free Room, Solid vibration free working table away from windows, ovens and other heat generating source.
6. Any others consumable etc.

Consumables (Suggested to purchase in sufficient quantity)

1. Cotton reel
2.  Bomb 'O' ring
3.  Valve body 'O' ring
4.  Ignition wire
5.  Schrader valve
