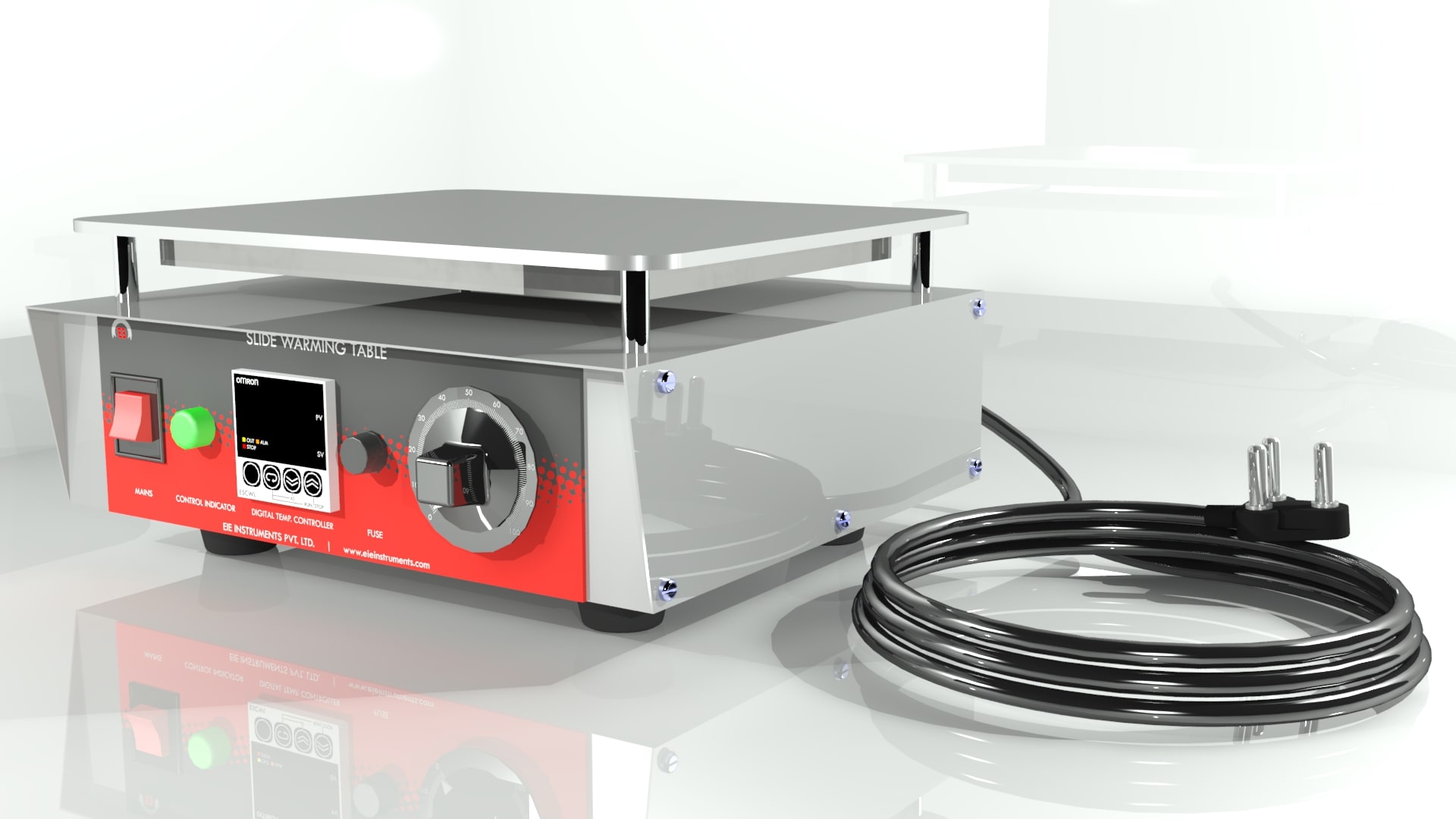

SLIDE WARMING TABLE-S.S. TOP-S.S. BODY-30 X 22 X 15 CM-
Model Number : EIE-212GD
Slide Warming table is good for cytology, histology, pathology, biology and clinical laboratories which are engaged in paraffin tissue embedding and section mounting. It provides uniform heat transfer over the entire surface. The work surface is made up of Stainless Steel and it is good for specimen contrast.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
- Highly Efficient
- Corrosion resistant for high durability
- Complete stainless steel construction
- Provides uniform heat transfer over the entire surface
- Stainless steel top surface is good for specimen contrast
- Top plate is mounted on an insulated frame
- Insulated top plate in order to avoid heat transfer to control panel
- Aesthetic outer appearance
- Compact and unique design
- Supplied with suitable cord wire and plug
Technical specification
|
Body |
Fabricated from Stainless Steel material, |
|
Shape of the body |
Rectangular |
|
Top plate |
Fabricated from thick Stainless Steel Material S.S. 304 Grade |
|
Temperature controller |
Microprocessor based Auto Tune PID Digital temperature controller cum Indicator |
|
Temperature Range |
From ambient to 70 °C |
|
Control Accuracy |
± 0.5 °C |
|
Display |
Digital LED display |
|
Heating element |
Sealed heating elements |
|
Heater capacity |
0.5 KW |
|
Insulation |
Cera wool insulation between Top surface and Bottom control panel |
|
Control panel |
Consists of mains switch and temperature controller |
|
Operation on |
230 Volts, 50 Hz, AC Power supply |
|
Working size |
30 cm x 20 cm x 15 cm (L x B x H) |
|
Overall Dimensions |
325 X 285 X 150(L X W X D) mm |
|
Weight (Approx.) |
8 kg |
