BISHOP PORE PRESSURE APAPRATUS (10KG/CM²)

BISHOP PORE PRESSURE APAPRATUS (10KG/CM²)

Model Number : TM-176

The Bishop pore pressure apparatus is used in a triaxial test system to accurately measure and control the pore water pressure within the soil sample during testing. It allows precise monitoring of the pore water pressure within the soil specimen, which is essential for determining the effective stress in the soil. Effective stress is critical in soil mechanics as it influences the soil's shear strength, compressibility, and overall behavior under load.

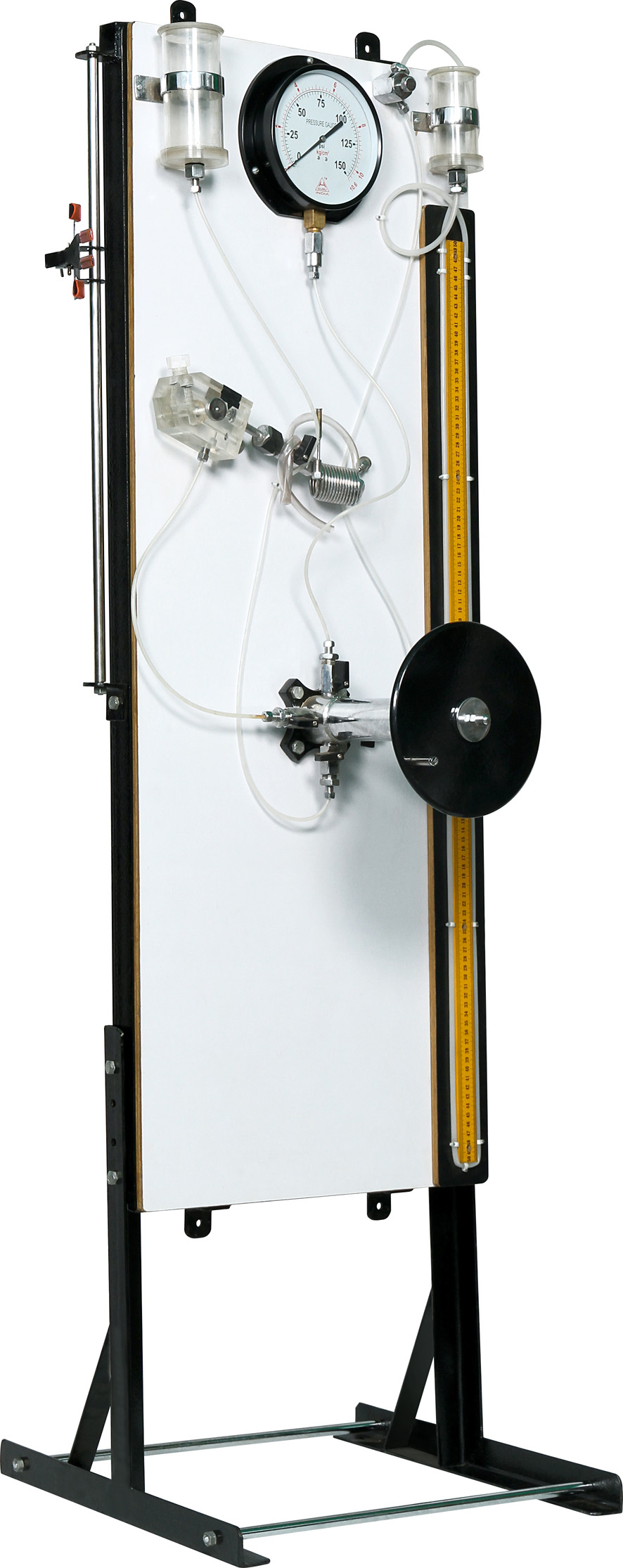

Consists of panel for wall mounting fitted with a 20cm dia pressure gauge with measuring range 1.0 to 10Kg/cm² x 0.1Kg/cm² and Manometer and Pressure Pump as follows.

MANOMETER: Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level.

Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir. The unit is tested against leaks up to 10Kg/cm²

Overall Dimensions

480 X 550 X 1590 (L X W X D) mm
