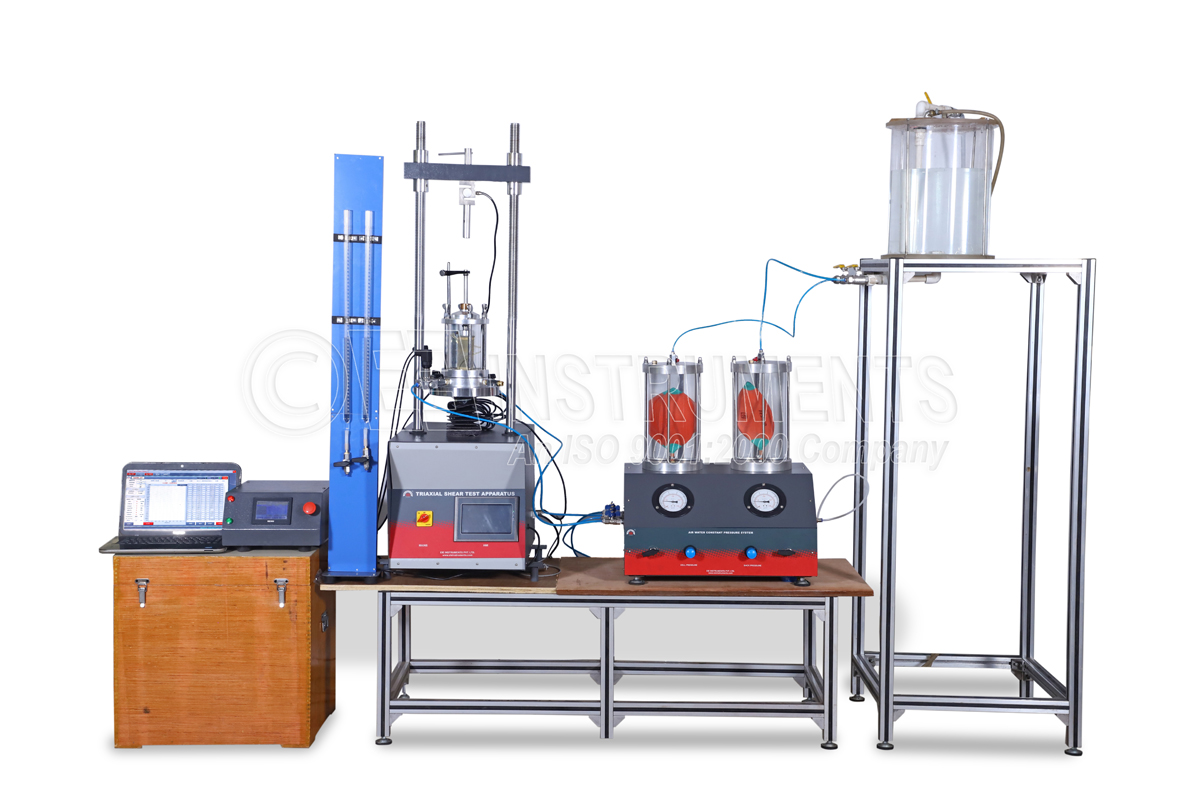

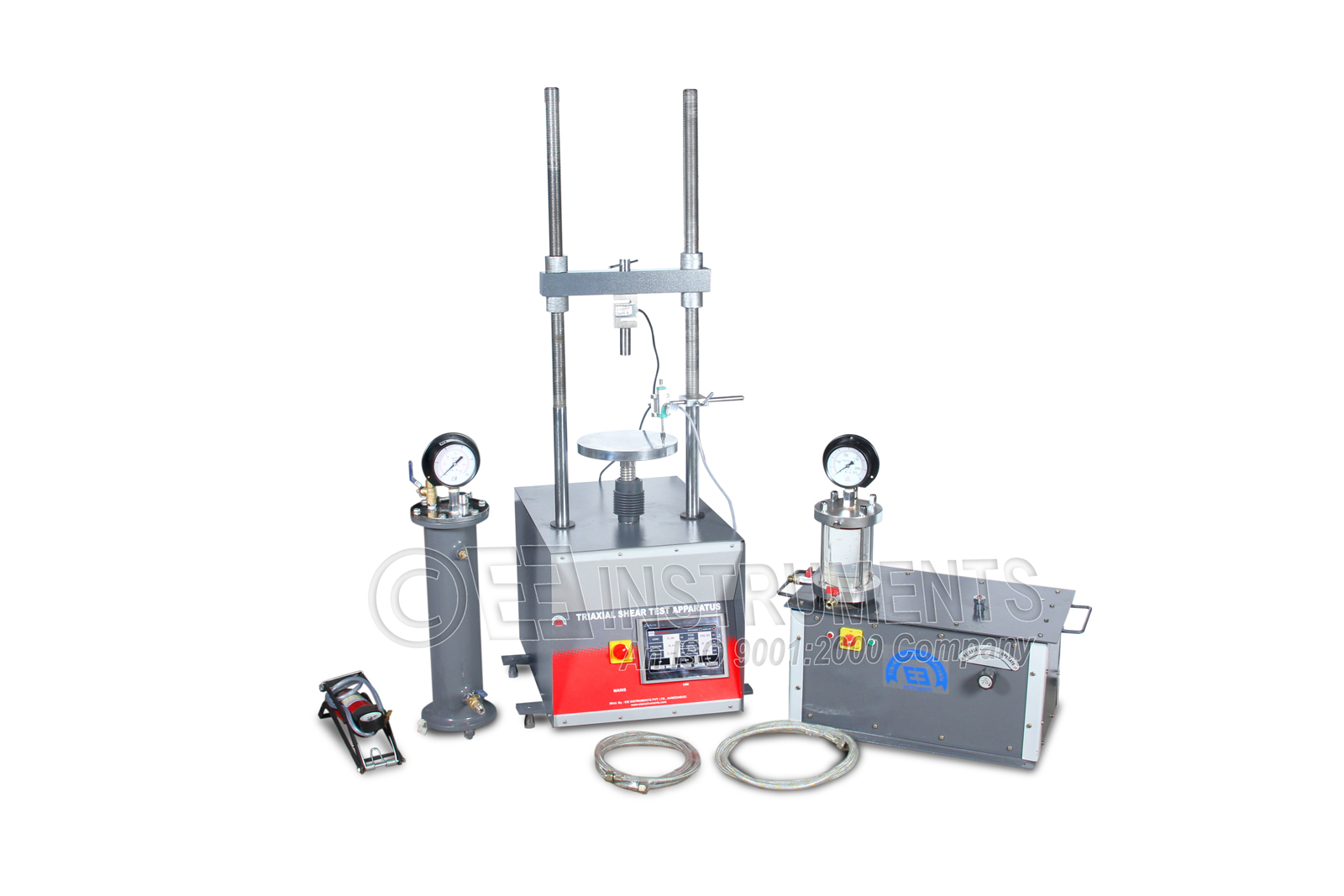

DIGITAL TRIAXIAL SHEAR TEST APPARATUS - FOR CD UU CU TEST WITH DEDICATED PC SOFTWARE

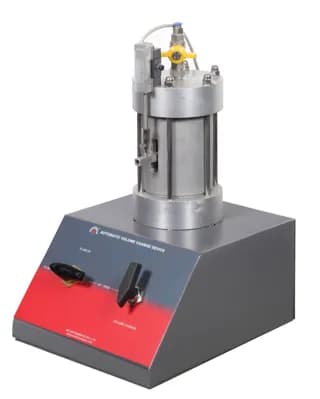

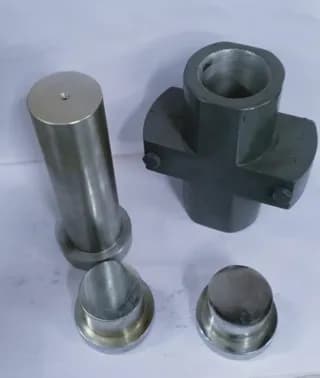

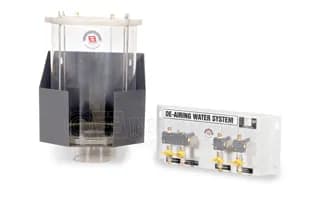

As per (IS:2720 Part XI & XII) for determining the shear strength parameters of saturated soils from triaxial compression shear tests conducted under consolidated undrained conditions with measurements of pore water pressures. The Triaxial Test System provides triaxial compression tests on cylindrical undisturbed and remolded soil samples. Unconsolidated undrained (UU), consolidated drained (CD) and consolidated undrained (CU) compression tests can be carried out using this apparatus. Supplied complete with Triaxial cell for 38mm dia specimen, Multi speed Loading Frame 50 KN with Load Cell, Pore Pressure Transducer, LVDT, Air/Water Constant Pressure system with air compressor. To work on 220/230 Volts, single phase, AC power supply. De-airing system with vacuum pump, Automatic Volume change gauge, Three Cell Saturation Device, wall mounted. Split Molds, Three Part split Molds, Sample extractor etc. can be quoted on request.
