ELECTROMAGNETIC SIEVE SHAKER

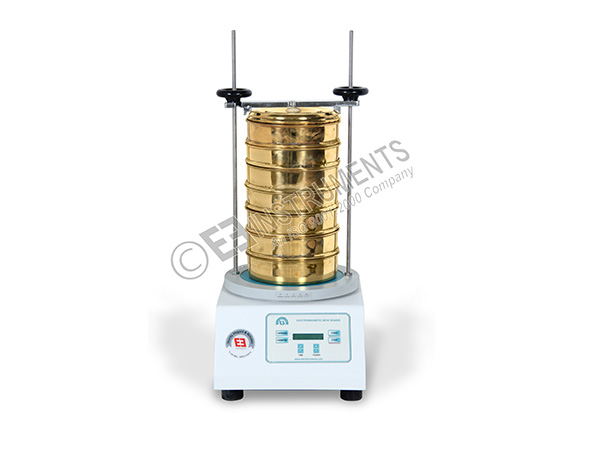

Electromagnetic Sieve Shaker

Model Number : EMS-8

Table top model, suitable for dry and wet sieving, wet sieving attachment at extra cost. Can accommodate 7 sieves and Lid-receiver, Supplied without sieves. Please specify the sieve size required to enable us to quote accordingly.

MODEL NO
  • EMS-8
  • AS 200 DIGIT CA
  • SV005
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Construction Details:

The instrument is powered by an electromagnetic drive which has no rotating parts, making it maintenance free and extremely quiet in operation. The vibratory action produced by the power unit moves the sample all over the sieve in a unique way producing faster, more efficient sieving, while the rapid vertical movements also helps to keep the apertures free from blocking.

The unit has been designed for user friendly operation and supports a menu driven 16 x 2 character LCD display. The unit is robustly built and can be used in laboratories or at site. It is compact and portable.

The microcontroller of sieve shaker sis used to set both the process time and the amplitude setting. The unit has 2 modes of operation continues and intermittent. Intermittent vibration improves performance and helps to clear blocked apertures. The EMS-8 sieve shaker offers total flexibility enabling optimum settings to be established for virtually and material under test.

The unit is compact and is used in laboratories. The instrument is fitted with a special clamping device that ensures that the sieves are held firmly and allows them to be quickly removed and replaced. Non - metallic springs and anti- vibration mountings are fitted to isolate vibrations from work surfaces and reduce noise levels.

Two supporting SS rods, sieve retaining assembly and rubber pad.

Technical specification
up-botton

Dry Sieving

Standard

Wet Sieving

Optional Kit

Mode of operation

Continuous and Intermittent

Capacity, No. of Sieves

Up to 8 sieves of 50 mm height

Total load of sieves

6 Kgs

Timer

Programmable from 1 min to 99 min

Amplitude level

Programmable from 5 to 20 (0.5 mm to 2.00 mm - WL)

Display

16 x 2 character alphanumeric LCD display

Noise Level

Less than 61 dB without sieves at maximum amplitude Less than 71 dB sieves and material at maximum amplitude

Power

230 Volts, 50 Hz, 600 VA, AC Supply

Dimension (mm)

L 330 x W 312 x H 270

Net Weight

65 Kg without sieve (Approximately),

Packed

75 Kg without sieve
