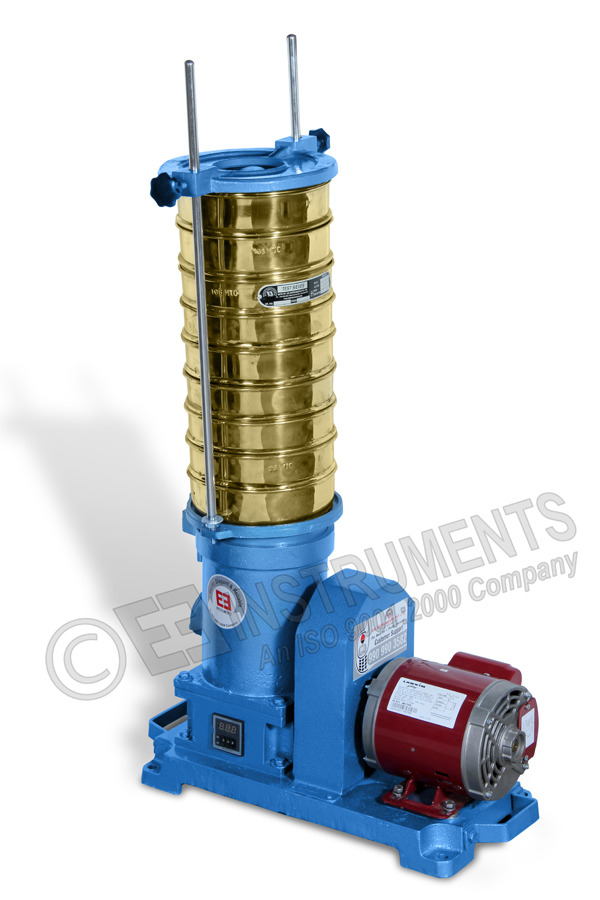

GYRATORY SIEVE SHAKER
Model Number : EIE-ST-21D20
Sieve Shaker Carries upto 7 sieves of 200mm diameter in single adaptor. Supplied without sieves or Lid‑Pan. Detailed specification as follows:
SIEVE SHAKER VARIANTS
- FOR 20CM DIA SIEVES
- FOR 45CM DIA SIEVES
- FOR 20CM & 30CM DIA SIEVES
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Salient Features
- Carries upto 7 sieves of 200mm diameter in single adaptor.
- The shaker is driven by a 1/4 HP motor through a reduction gear
- The sieve table does not rotate, but is inclined from the vertical axis.
- The direction of inclination changes progressively in clockwise direction.
- If the stop‑pin below the table is removed, the shaker can have a rotary motion.
- In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilized.
- A pair of rods and a holder are supplied along with the main unit.
- The holder can be fixed on top of the upper most sieves, and thus the sieve set is firmly held.
- Suitable for operation on 230 volts, 50 cycles single phase A.C. Supply.
- Fitted with Digital time switch adjustable from 1‑99 minutes.
- Supplied without sieves and Lid‑Pan.
Click here for working video : https://www.youtube.com/watch?v=USDLDLtLH6g
Technical specification
Overall Dimensions |
590 X 320 X 500(L X W X D) mm |
No. of sieves accommodated |
6 sieves + 1 set of Lid‑Pan |
Make of the Motor |
GODREJ LAWKIM |
No. of tapping from bottom |
85 to 90 |
Timer |
Digital ‑ Presettable |
Timer Range |
0 TO 99 Minutes |
Power Supply |
220/230 Volts, 50 HZ, single Phase, AC |
Weight |
51 Kg Approx. |
