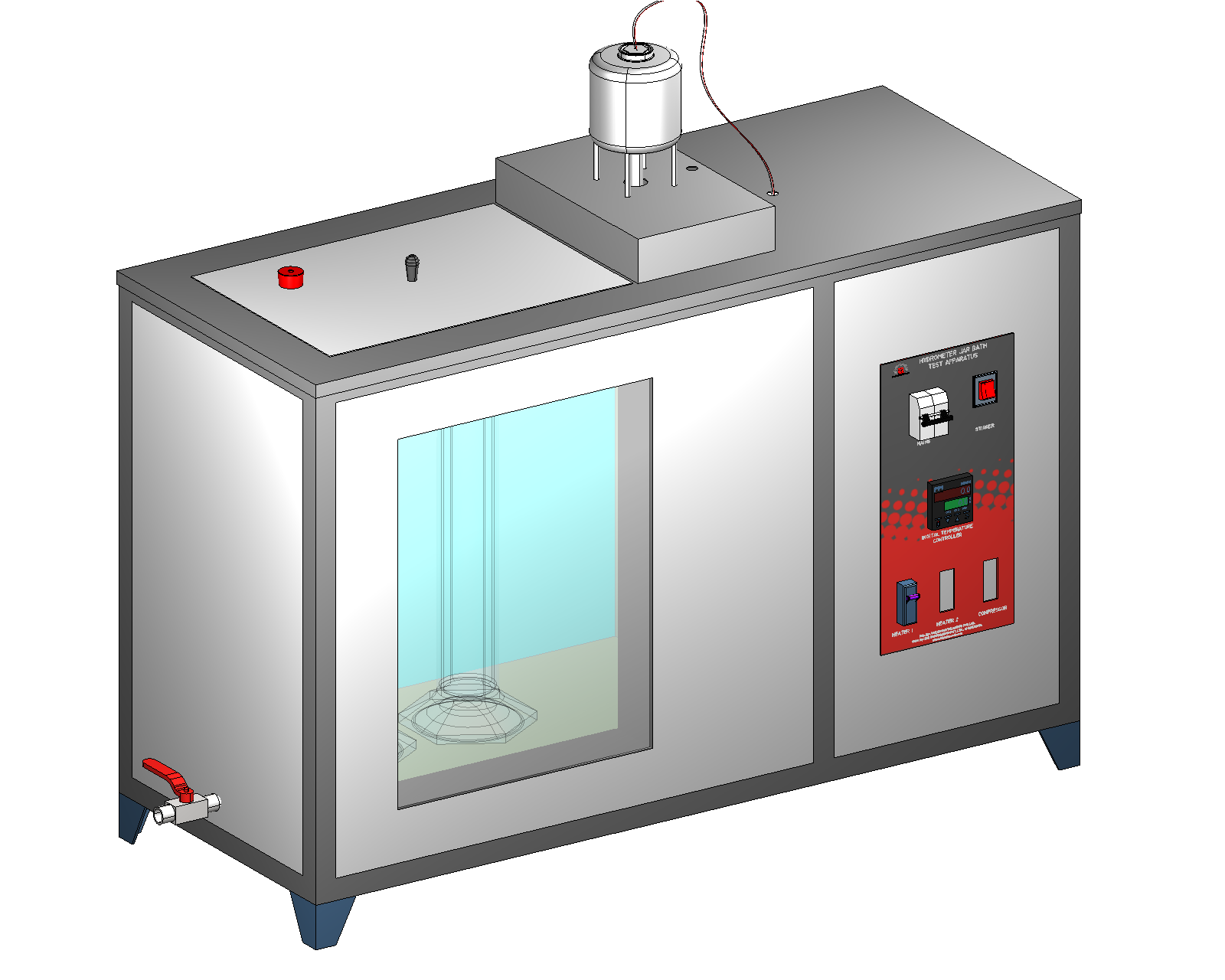

HYDROMETER JAR BATH WITH HEATING AND COOLING-(ASTM D7928)-SEDIMENT TEST

HYDROMETER JAR BATH (ASTM D7928-17, ASTM D6913)-SEDIMENT TEST

Model Number : EIE-ST-19.A1

The Hydrometer Jar bath maintains a constant temperature (e.g., 20°C) for the sedimentation cylinder during the test. The same bath can be used to Maintains a constant temperature @15°C for the test requirements as per ASTM D1298.


Compliance Standards:

ASTM D7928-17, ASTM D6913, ASTM D1298


Details:

  1. Double walled
  2. Highly efficient model
  3. Aesthetic outer appearance
  4. Easy operation and hassle free maintenance
  5. The body of the bath is mounted on a sturdy angle iron frame with inner chamber consisting of thick polished stainless steel with cooling coil duly soldered on the outside of the same to ensure perfect cooling effect
  6. The outer wall is of thick PCRC sheet duly pre-treated and powder coated for longer life.
  7. The hollow space between the inner chamber and outer wall is filled with high grade insulation of thickness 75 mm to prevent loss of temperature.
  8. The refrigeration system consisting of hermetically sealed ISI marked KIRLOSKAR OR EQUIVELENT make compressor for minimum noise level and smooth operation.
  9. Coupled with other quality components, it ensures a high degree of reliability over a long period.
  10. Heating system comprises of ISI marked immersion type heating element for attaining above ambient temperature.
  11. The unit is provided with a high performance circulation stirrer to circulate the inside fluid to ensure a constant and uniform temperature throughout the chamber.

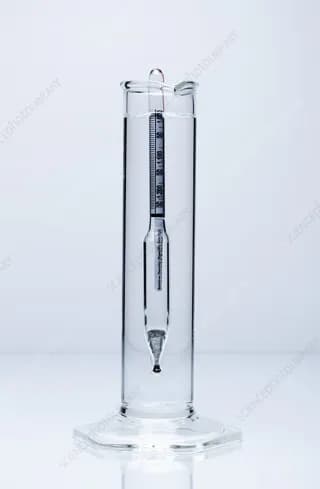

  12. Chamber can accommodate 2 Hydrometer Jars at a time.(Supplied wthout Hydrometer Jar or rubber bung)

Chamber Size

495 X 230 X 508 mm

Chamber volume

58 Liters

Construction

Double walled

Inner chamber

Stainless steel S.S. - 304

External body

Mild steel duly powder coated

Exterior Body Paint

Powder coating

Insulation thickness

75 mm

Temperature controller

Microprocessor based AUTO-Tune PID digital controller

Temperature Range

5 °C - 50 °C

Temperature Accuracy

± 0.5 °C

Temperature Resolution

0.1 °C

Temperature Uniformity

± 1 °C

Heating elements

Immersion heaters

Refrigeration System

Hermetically sealed ISI marked KIRLOSKAR OR EQUIVALENT make compressor for minimum noise level and smooth operation

Refrigerant

R-134A Gas

Motorized Stirrer

For uniform temperature distribution

Stirrer material

Stainless Steel S.S. - 304

Overall Dimensions

38" x 15" x 24" (L X W X H)
