LATERAL PRESSURE ASSEMBLY

Model Number : TM-174

In a triaxial test setup, a lateral pressure assembly is used to apply a controlled pressure around the specimen to simulate in-situ conditions or the natural confining pressures that the material would experience underground. This assembly is crucial in determining the strength and deformation properties of soil or rock under controlled laboratory conditions.

More Information
Techincal Specification

As per ASTM D4767/ASTM D2850/ IS:2720 (Part 11 and 12)

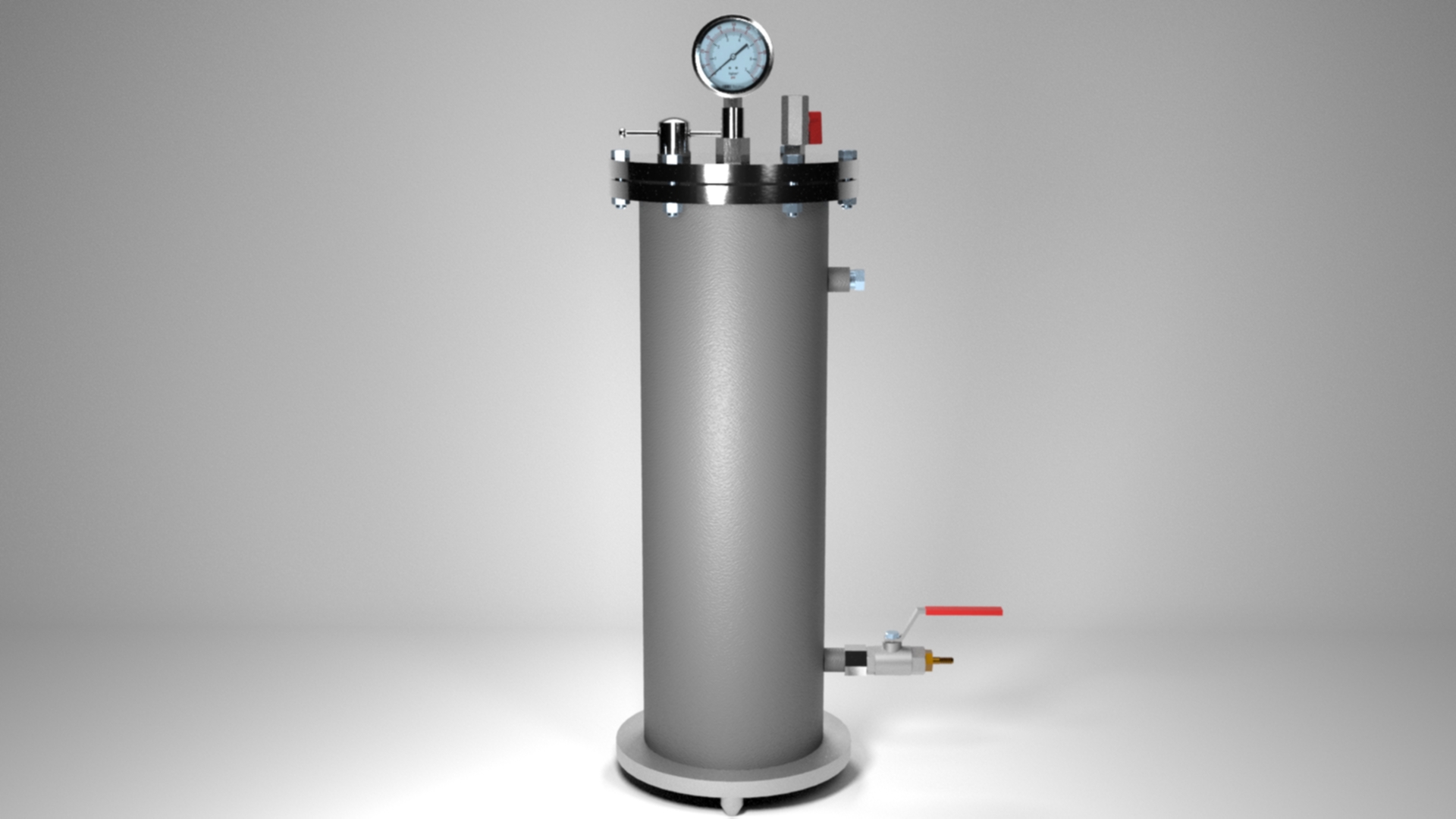

The apparatus consists of a pressure chamber which has a flanged top cap fitted with a 10Kg/Cm2. Pressure gauge and a valve for pumping in air. Water inlet and drain cock are fitted to the chamber. The foot pump supplied easily develops a pressure of 10Kg./Cm2 Complete with connecting pressure hose.
