PLATE BEARING TEST APPARATUS-IS 1888

PLATE BEARING TEST APPARATUS-IS 1888

Model No: TM-133

As per IS:1888-1982 (R.A.2021), Supplied with Hand operated Hydraulic Jack 500 KN, High pressure flexible pipe of 5 meter length, Ball and socket arrangement, Magnetic base -4 Nos, Dial Gauge 0.01 X 25 mm - 4 Nos, Datum Bar, Grooved square M.S.Plates of 60 cm, 45 cm and 30 cm. Further details as per the following specifications. Without Load Truss and anchor spikes

Compliance Standards :

IS 1888-1982 (R.A.2021), ASTM D1194, ASTM D1195


Purpose :

These test methods are used to estimate the bearing Capacity of in-situ soil under field loading conditions for a Specific loading plate and depth of embedment. Test methods are also used for load tests of soil and flexible pavement Components for use in evaluation and design of airport and Highway pavements


Brief Construction Details :

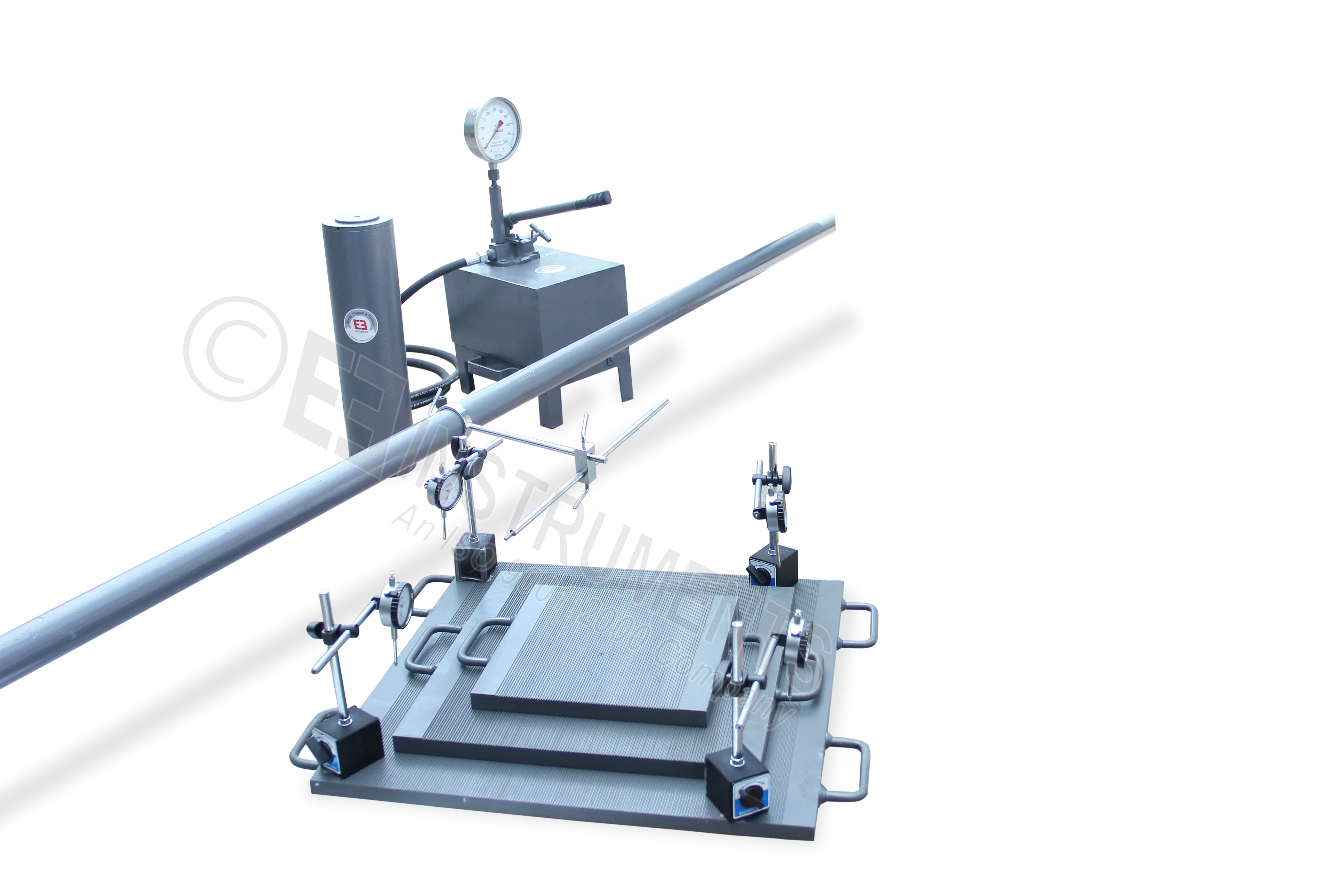

The entire plate bearing test assembly consist of following parts and accessories :

  • Hand operated Hydraulic jack with pressure gauge capacity 50 tone with 5 meter long metal tube with end coupling - 1 No
  • Ball and Socket arrangement, consisting of two steel plate with one steel ball in between them - 1 Set
  • Extension rod, 12 mm diameter x 250 mm long for taking dial gauge reading - 16 Nos
  • Magnetic base with male thread on top for holding extension rod - 4 No
  • Column 15 cm diameter x 50 cm long with flanges complete with four bolts and nuts - 1 No
  • Column 15 cm diameter and 25 cm long with flanges complete with 4 bolts & nuts - 2 No
  • Datum bar, light weight, portable, total span 5 meter, height approx 30cms mounted on two removable legs, made of 2 parts - 1 No

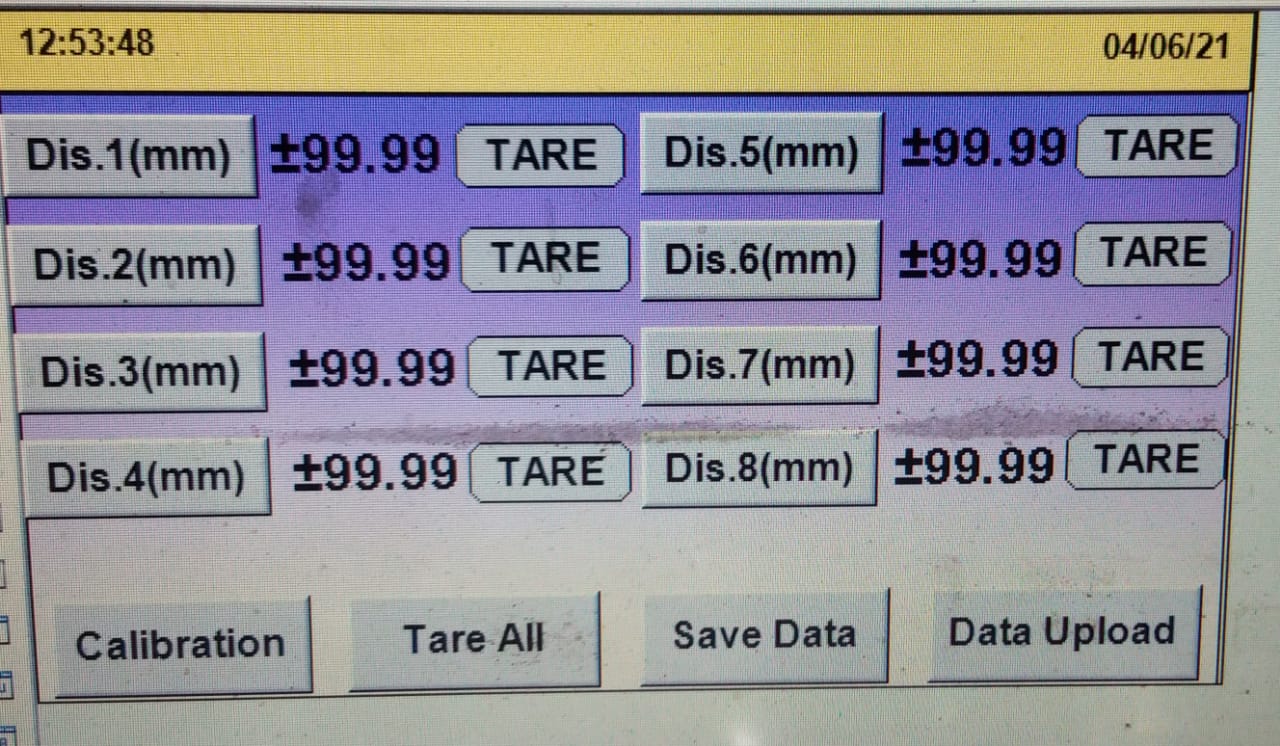

  • Dial gauge 0.01mm x 25mm travel - 4 No
  • Grooved M.S. Plate 30cm x 30cm x 25mm thick - 1 No
  • Grooved M.S. Plate 45cm x 45cm x 25mm thick - 1 No
  • Grooved M.S. Plate 60cm x 60cm x 25mm thick - 1 No


LOAD TRUSS AT EXTRA COST

Weight (kg) 365
