Complies with following International Standards

BS 1377:4, BS 1924:2

Purpose

Used for determining the relationship between the moisture content and density of compacted soil.

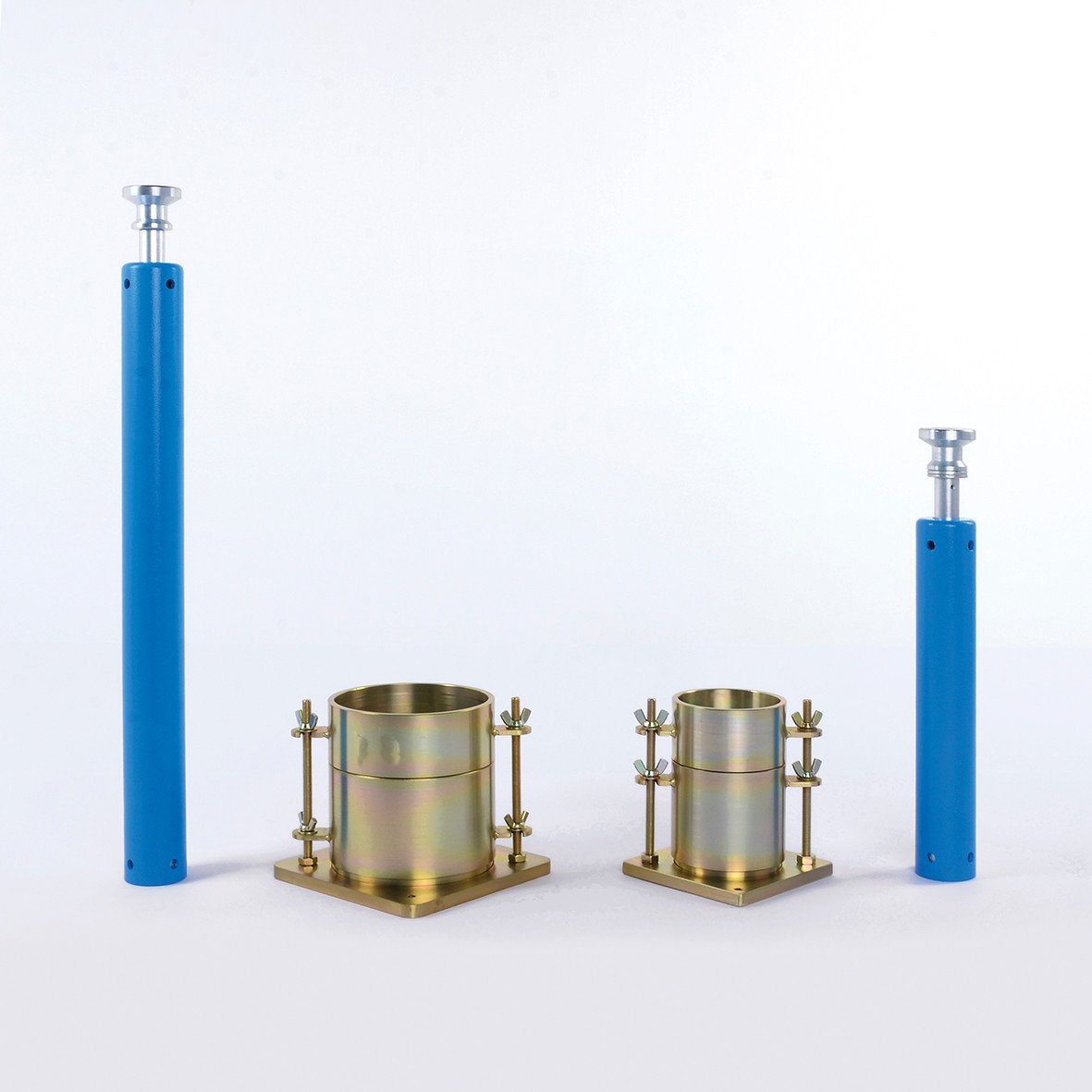

Construction Details of Standard Proctor Mould :

• The moulds include collar, mould body and base plate.
• It will be made of Mild steel having capacity of 944 cm3
• The mould will be fitted with a detachable base plate and removable extension collar.
• The internal surface of the mould will be smooth.
• Complete with our own test certificate.
• Internal diameter of mould : 105 ± 0.5 mm
• Internal effective height      : 115.5 ± 0.5 mm
• Effective weight of mould   : 07 kg
• Volume                                   : 1000 cm3



Construction Details of Standard Rammer :

• The rammers are provided with guide sleeve with vent holes.
• It is made of Metal which is chrome plated
• The rammer will be equipped with a suitable arrangement for controlling the drop to the ASTM specified height.
• Rammer diameter      : 50 ± 0.5 mm
• Rammer weight          : 2.5 kg
• Free fall height           : 300 ± 3  mm
• Complete with our own test certificate
