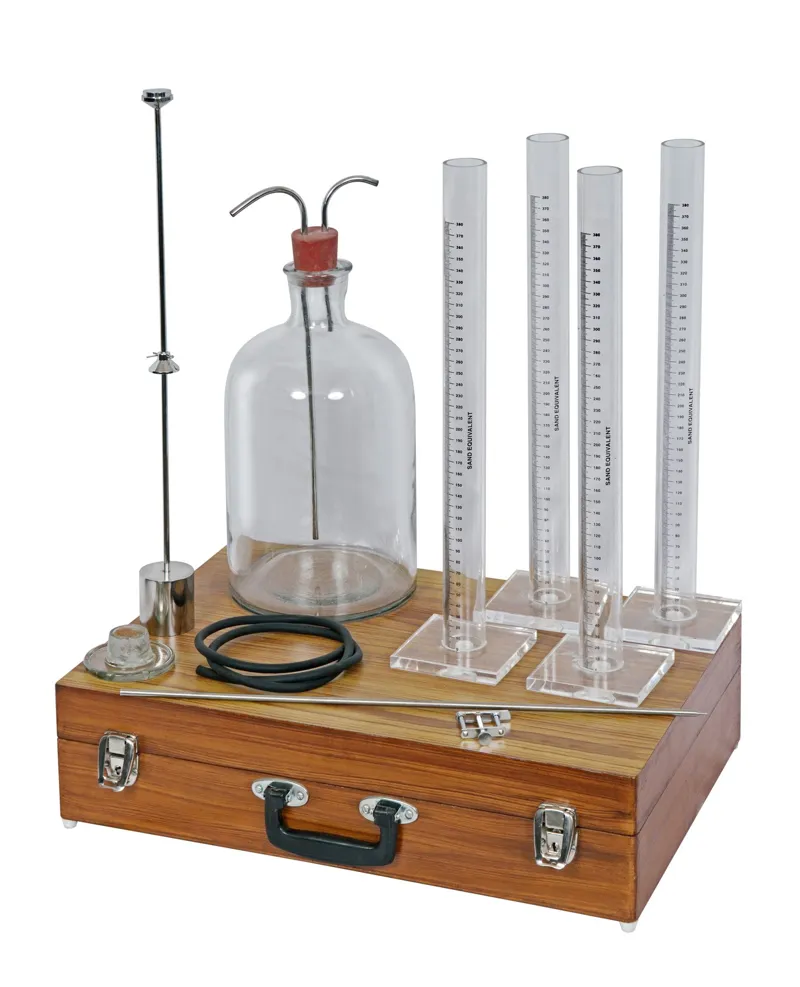

SAND EQUIVALENT VALUE TEST APPARATUS

Compliance Standards

As per  IS : 2720 (Part‑37), ASTM D2419, AASHTO T176, EN 933-8

Details

Consists of the following parts and accessories :

1. 4 Nos. Transparent Acrylic Plastic Cylinders with square base cylinders, Graduated from base 380mm in 1 mm divisions.
2. 2 Nos Rubber stoppers for above.
3. 1 No S.S. Irrigator tube.
4. 1 No Siphon assembly.
5. 1 No Weighted foot assembly.
6. 1 No Measuring can 90ml. Capacity.
7. 1 No 30cm diameter G.I. frame Sieve having perforated square hole of 4.75mm.
8. 1 No Wide mouth plastics funnel (100ml diameter).
9. 2 Nos Solution containers cap. 4 liters.
10. 1 No Enamel tray size 45cm x 60cm.
11. 1 No Stop Watch as a timing device.
12. A kit of consumable chemicals containing : Technical grade anhydrous calcium chloride,500gms.
13. Glycerin technical grade 2.5kg, Formaldehyde 100gm.

Note

Complete as above. (Supplied without Mechanical Shaker which is available at extra cost)
