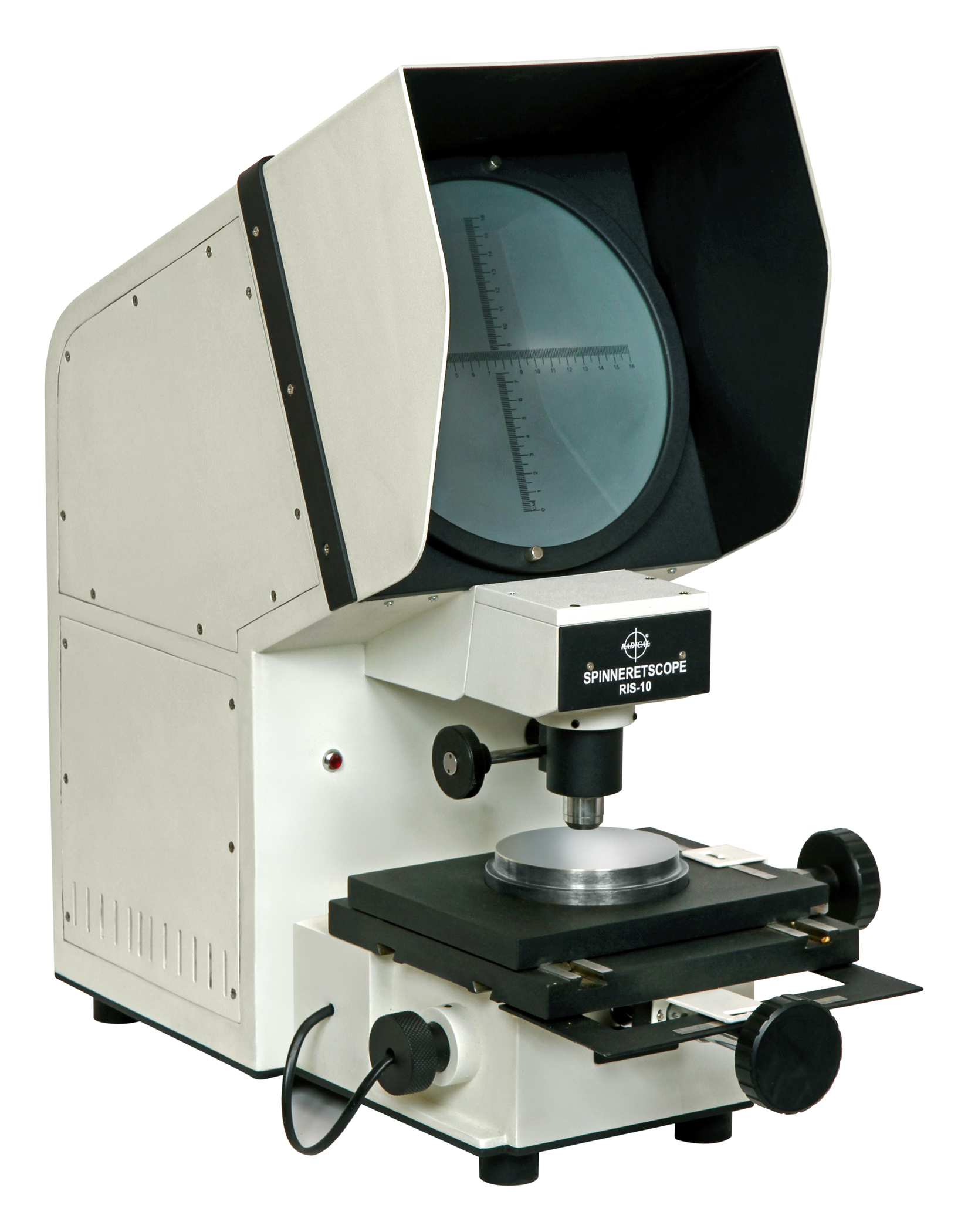

SPINNERETSCOPE - RIS-10

SPINNERETSCOPE - RIS-10

Model No: EIE-POY-07RIS10

New Improved Model With Choice Of Greater Magnification, X Y Movement of Spinneret Stage. Note: At time of placing the Purchase Order, Please provide dimensions of spinnerate for suitable supply.
  1. Specially designed to check the blockage in spinnerets
  2. Equipped with LED Projection lamp of 10 watts, workable on 220 volts mains.
  3. Arrangement for easy and convenient X and Y movement of the spinnerets is provided.
  4. With larger screen diameter and mechanical stage.
  5. The stage can accommodate spinneret up to 105 mm.
  6. The spinneret-scope will be without glass plate at the bottom, but with the suitable adopter to accommodate the spinneret of 59, 65, 75, 85, 95, 100 & 105 dia. ( Customer has to provide spinnerate size at the time of placing the order.)


Note: At time of placing the Purchase Order, Please provide dimensions of  spinnerate for suitable supply.

Screen Diameter 200 mm
Measurement Area Up to 95 mm Dia Spinneret
Magnification on the Screen 100 X
Field of View 2 mm (Focusing by Rack & Pinion)
