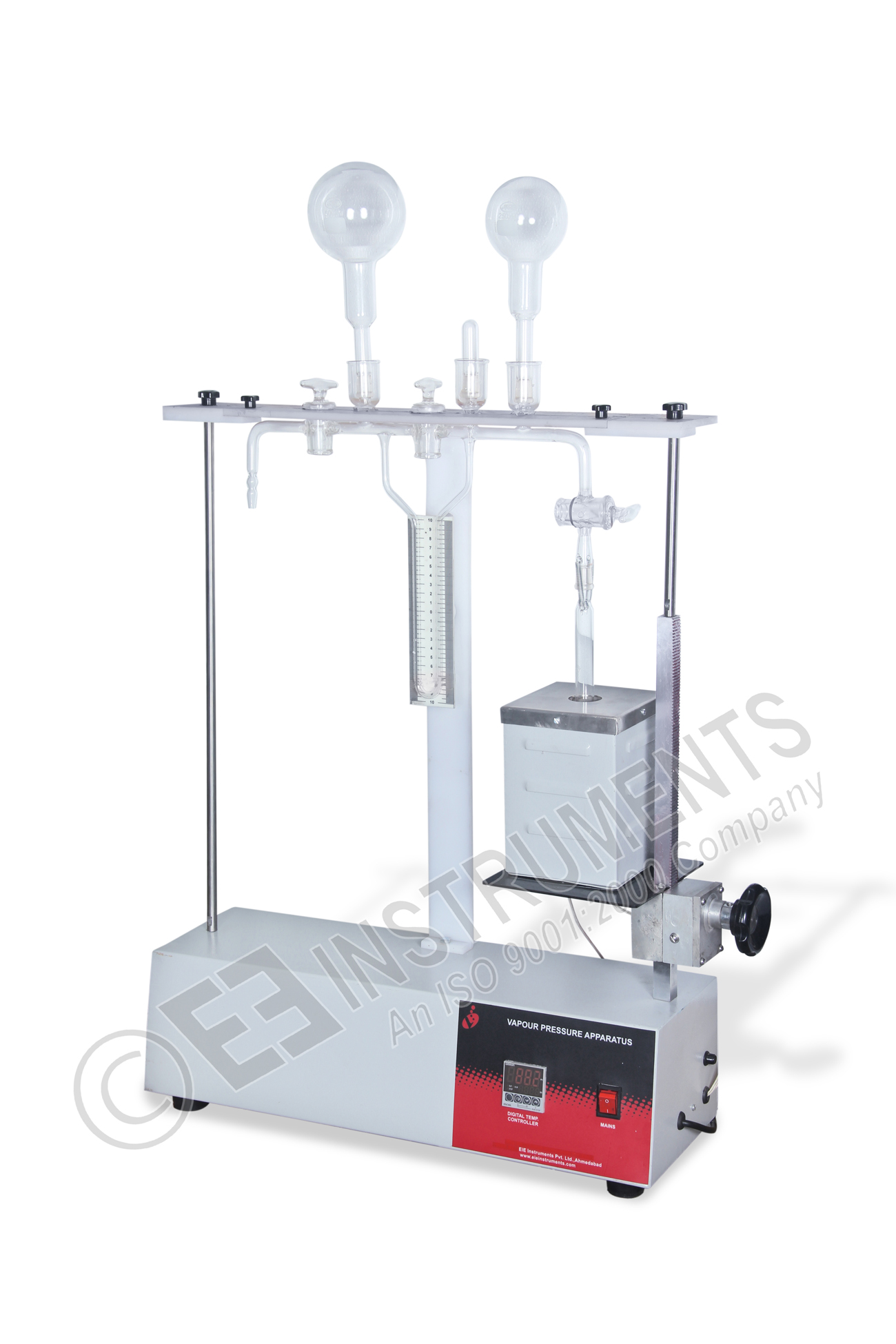

VAPOUR PRESSURE MOISTURE DETERMINATION APPARATUS WITH GLASS PARTS

Complete apparatus with Heating Box, digital temp.controller and glass assembly. Vacuum Pump and silicon Vacuum Grease available at extra cost.

Applications:

The unit will be suitable to find out the percentage of moisture determination in the raw and dry chips.

Details of Apparatus:

• Complete unit will be supplied with heating unit, stand and glass parts for working at 200 °C. Temperature is controlled by Auto‑tune Digital PID temperature controller cum Indicator. Supplied complete with 4 Nos of spare moisture tubes, one bottle of 50 gram silicon grease and connecting rubber tubes.

Essential Accessories At Extra Cost:

• Imported Oil Free Piston powered Vacuum Pump with Vacuum Gauge and regulator, Max Vacuum 650mm/Hg OR
• Rotary High Vacuum Pump, Oil Filled, with Vacuum Gauge and regulator, Max Vacuum 760mm/Hg
• Spare Set of Glass parts for above

Note

Please select any one vacuum pump as per your requirement.

Essential Accessories to perform the test

1. Electronic weighing Balance with readability of 0.1 mg
2. Hot Air Oven
3. Copper sulfate solution
4. Liquid Paraffin
5. Silicon Vacuum Grease
