VAPOUR PRESSURE MOISTURE DETERMINATION APPARATUS WITH GLASS PARTS
Model Number : EIE-POY-01
Complete apparatus with Heating Box, digital temp.controller and glass assembly. Vacuum Pump available at extra cost. Further details and image of the Instrument as follows.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Complete apparatus with Heating Box, digital temp.controller and glass assembly. Vacuum Pump and silicon Vacuum Grease available at extra cost.
Applications:
The unit will be suitable to find out the percentage of moisture determination in the raw and dry chips.
Details of Apparatus:
- Complete unit will be supplied with heating unit, stand and glass parts for working at 200 °C. Temperature is controlled by Auto‑tune Digital PID temperature controller cum Indicator. Supplied complete with 4 Nos of spare moisture tubes, one bottle of 50 gram silicon grease and connecting rubber tubes.
Essential Accessories At Extra Cost:

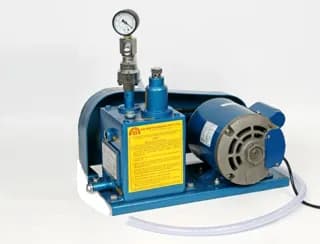

- Imported Oil Free Piston powered Vacuum Pump with Vacuum Gauge and regulator, Max Vacuum 650mm/Hg OR
- Rotary High Vacuum Pump, Oil Filled, with Vacuum Gauge and regulator, Max Vacuum 760mm/Hg
- Spare Set of Glass parts for above
Note
Please select any one vacuum pump as per your requirement.
Essential Accessories to perform the test
- Electronic weighing Balance with readability of 0.1 mg
- Hot Air Oven
- Copper sulfate solution
- Liquid Paraffin
- Silicon Vacuum Grease
