TENSILE TESTING MACHINE

TENSILE TESTING MACHINE

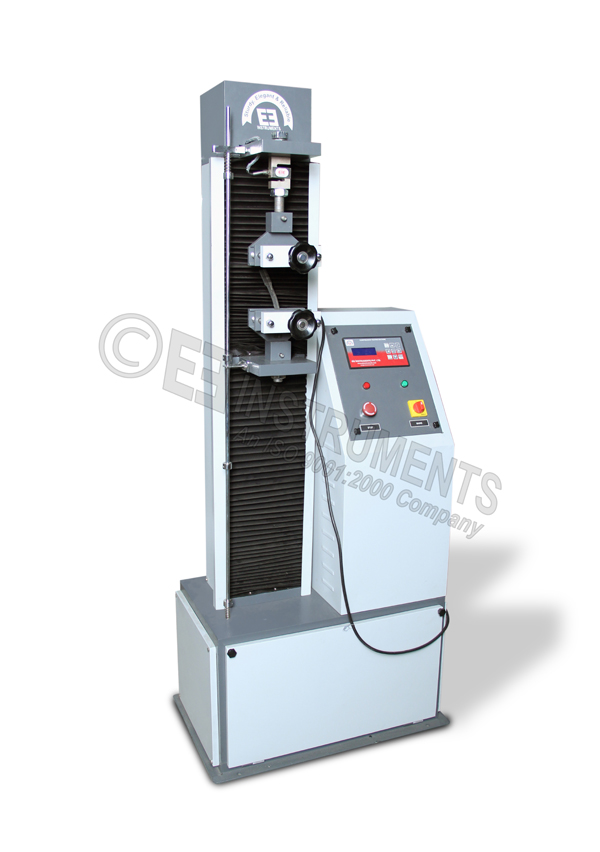

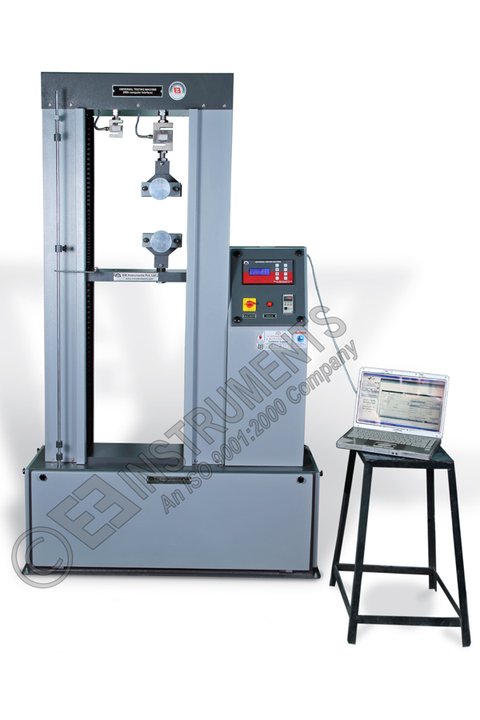

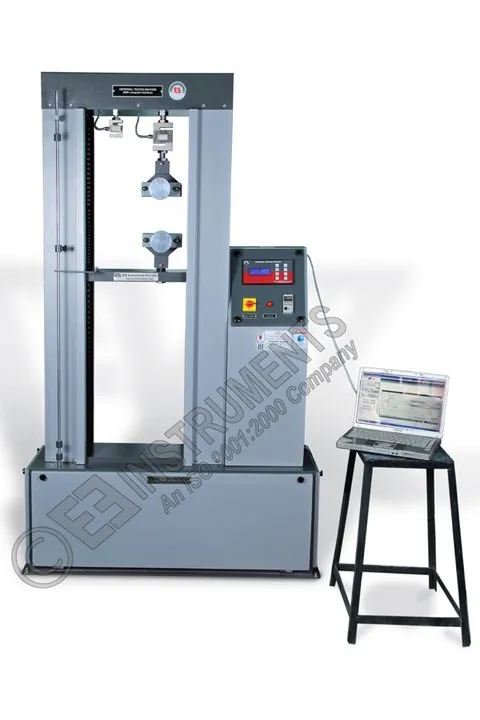

Model Number : PT-115DP500

EIE Make ‑ Computerized Tensile Strength testing machine having capacity of 0‑500 Kgf (5 KN) (5000 N). Supplied complete with dedicated PC software program. Equipped with Ball screw, Induction motor & Motor Drive (for speed variation 10mm ‑ 350mm/min) along with encoder to measure the elongation using Pair of Grips.

DISPLAY SYSTEM AND CONNECTIVITY
  • DIGITAL DISPLAY WITH PC INTERFACE AND SOFTWARE
  • TOUCH SCREEN HMI & PLC WITH PC SOFTWARE
TYPE OF MOTOR CONTROL
  • INDUCTION MOTOR CONTROLLED SYSTEM
  • SERVO MOTOR CONTROLLED SYSTEM
MACHINE FORCE CAPACITY
  • 0.5 KN (50 KGF)
  • 1.0 KN (100 KGF)
  • 2.5 KN (250 KGF)
  • 5.0 KN (500 KGF)
  • 10 KN (1000 KGF)
  • 25 KN (2500 KGF)
  • 50 KN (5000 KGF)
  • 100 KN (10000 KGF)
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance Standards:

ASTM D882, ASTM D828, ASTM D1938, ASTM D1876, ASTM D638, ASTM F88, ASTM F904, ASTM D2256, ASTM D5034, ASTM D412, ISO 1924, TAPPI T494,


Grips Applications:

GRIPS can be supplied for one of the following applications. Please specify your application at the time of order. A pair of grips will be supplied at extra cost. Please refer to the optional accessories.


Applications:

  • Flexible laminated and formed pouches Or
  • Paper and Paper Kraft Or
  • Yarn/Fabric/Rubber Or
  • Plastic and Polymer testing Or
  • Fine wire testing Or
  • G.I. Wire testing, Brass, Copper, Aluminum fine wire testing Or
  • Vulcanized rubber/Elastomer


Overview:

EIE Make ‑ Computerized Tensile Strength testing machine having capacity of 0‑500 Kgf (5 KN) (5000 N). Supplied complete with dedicated PC software program (Optional). Equipped with Ball screw, Induction motor & Motor Drive (for speed variation 10mm‑ 350mm/min) along with encoder to measure the elongation using Pair of Grips.


Salient Features:

  • Floor standing model
  • Aesthetic outer appearance
  • Unique and compact design features
  • Fitted with Microprocessor based PROGRAMMABLE Logical controller
  • Computer interface through USB Drive
  • Equipped with Ball screw for friction less traverse
  • Rotary encoder for high accuracy in elongation
  • Reputed make Induction motor with Dedicated Gear Box and Drive for speed variation and to maintain speed at high torque (at maximum load)
  • Easy to use display unit (controller part) and software
  • In‑built Over Load Safety
  • In‑built Over Travel Safety
  • Auto Reverse facility
  • Auto Break
  • You can get graph for load v/s elongation (stress v/s strain) and also get a excel sheet with a single click

Protection:

  • Overload protection for load cell
  • Over travel of traversing crosshead in both direction
  • Automatic stopping and return of cross head at original position immediately on breakage/Failure of specimen
  • Higher traverse speed
  • Emergency Manual switch for stopping the machine


Software facility (Optional):

  • Specially designed Windows based Graphical Dedicated Software
  • RS 232 interface with WINDOW based software to conduct the test directly from software itself
  • Can store generated data with corresponding graph
  • Can also store Yield Load, Yield Extension, Break Load, Break Extension, Max load and Modulus of Elasticity
  • User can export the generated data in various file formats such as i.e. Excel, PDF etc
  • Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
  • User can change the design of generated graphs i.e. Line, Doted line, etc facility in graph
  • Graph Grids color combination facility
  • Graph zooming facility
  • Individual graph comparison facility
  • Graph overlapping facility for analysis of material property
  • Auto scaling facility
  • Company logo insertion facility
  • Software can run various tests and can recall data for any test conducted the in history. (If Saved)
  • Software is Menu Driven for easy navigation.
  • Test reports and graphs directly printed on terminal printer through direct print commands
  • Data and Result Units Selectable
  • User can operate the machine directly from the software itself


Note:

  • Please specify the test application at the time of order for preparation of the Test Jaws (Grips) accordingly.
  • Test Jaws/Grips for different applications, will cost extra. Please refer to the optional accessories section.
  • User can also utilize this machine for other than here listed ASTM Standards & test applications complying with suggested speed range and load capacity. Please call us for any clarifications.
Technical specification
up-botton
TENSILE TESTING MACHINE-5 KN-WITH PC INTERFACE AND SOFTWARE

Exterior Body Paint

Powder coated

Frame

Heavy duty channel with vertical support

Vertical Clearance

1000 mm

Display

Digital LCD Display

Capacity

0 - 500 Kgf (0 - 5000 N) (5 KN)

Load cell

‘S Type’ load cell of reputed make

Results displayed on screen

Load, Elongation values, Testing speed and type of test

Least count for elongation

0.01mm

Least count for load

10 grams

Load units

Kg, Newton & KN as per selection

Speed Variations

From 10mm/min to 350 mm/min

Speed control

Frequency controlled AC Drive

Motor for speed variations

Reputed make Induction Motor with dedicated gear box

Test jaws

Jaws for Tensile Test of Fabric/Yarn/Lea strength/Fine Wire/G.I. Wire/Plastic/Polymer/Paper

No. of screws

Single screw mechanism driven through reputed make motor & gearbox

Data port

Available with dedicated PC Software to log, modify and analyze the generated data

Power Supply

230 Volt, 50 Hz, Single Phase, AC Supply

Supplied with

Load cell calibration certificate and Instruction Manual


Accessories
