Job Application
Compliance Standards:
BS 2782
Applications:
- Cardboard
- Foam
- Paper
- Plastic
- Rubber
Key Features:
- Metal cutting die
- Able to be re-sharpened
- Longer service life than other dies
|

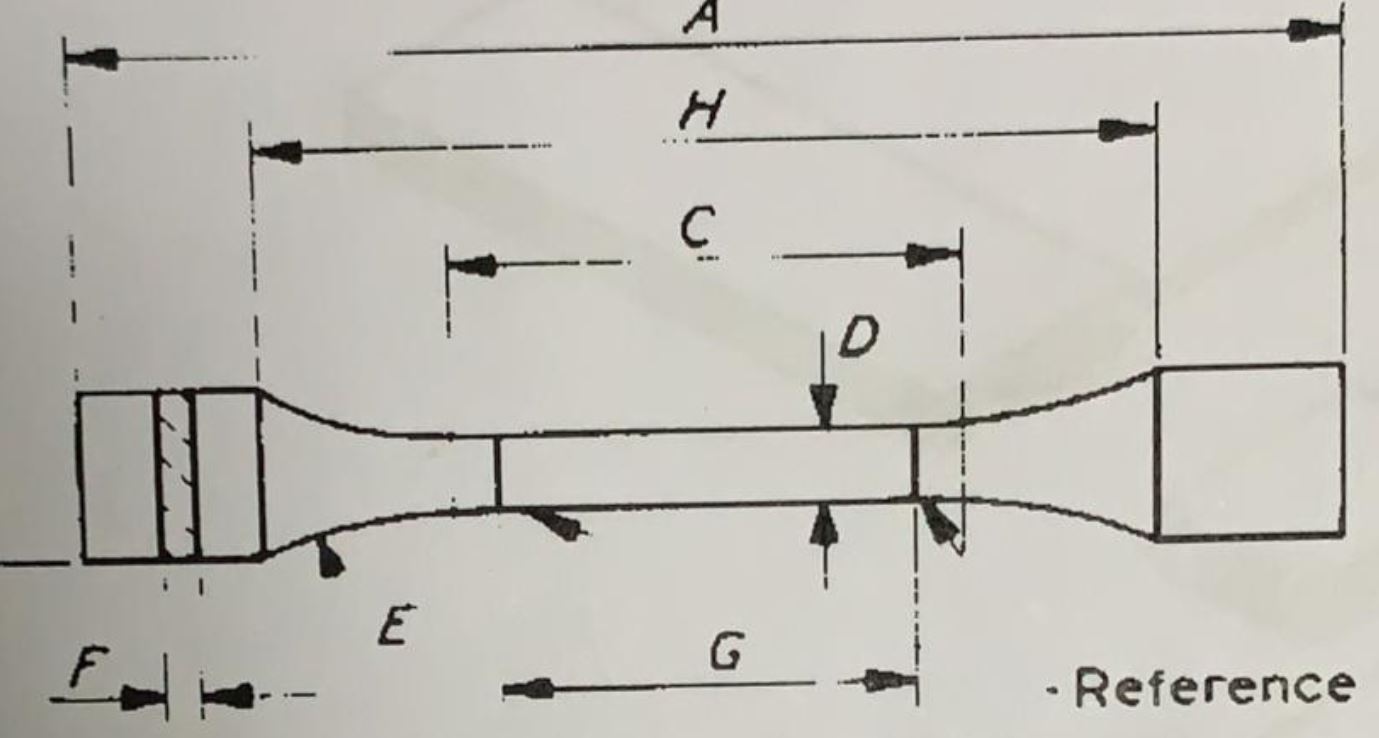

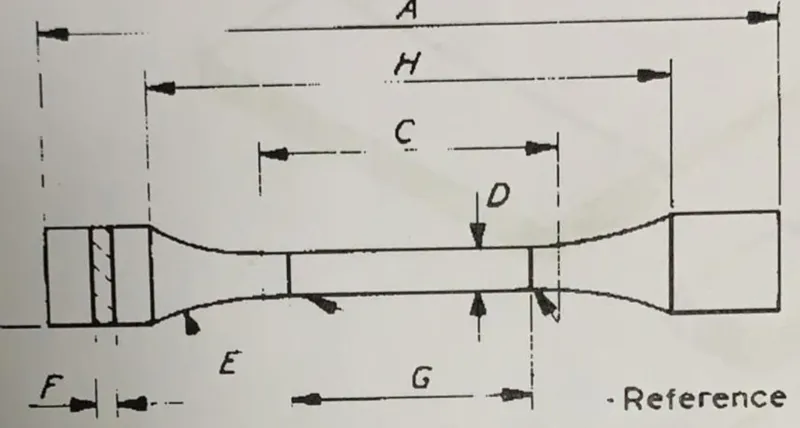

Overall length (mm) |
150 mm |
|
Width at ends |
20 ± 0.5 mm |
|
Length of narrow parallel-sided portion |
60 ± 0.5 mm |
|
Width of narrow parallel-sided portion |
10 ± 0.5 mm |
|
Radius Minimum |
60 |
|
Minimum Thickness |
1 |
|
Maximum Thickness |
10 |
|
Distance between reference lines |
50 ± 0.5 mm |
|
Initial Distance Between Grips |
115 ± 5 mm |
