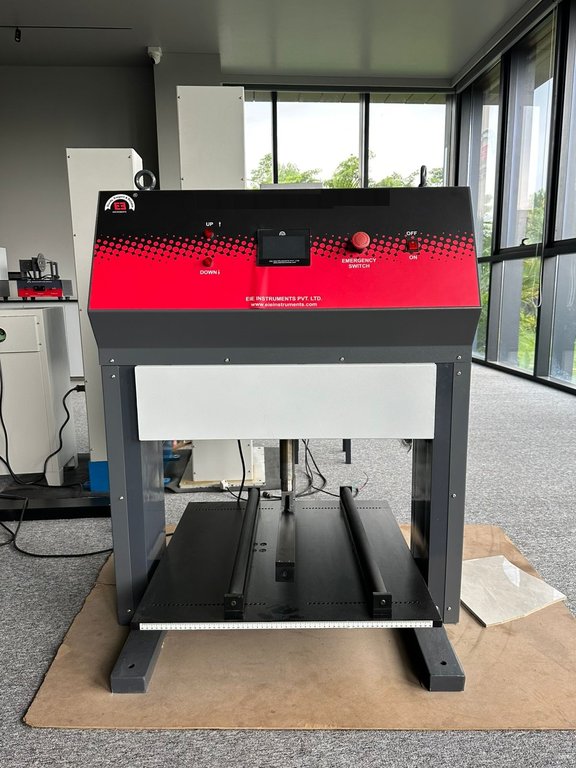

MOR TESTING MACHINE

MOR TESTING MACHINE

Model No: TC-104

As per IS : 13630 (Part - 6), ISO 10545 (Part-4), with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading at 1 Newton per mm square per second. Capacity 1000 kgf. Least count 0.1 kgf. with adjustable test span to accommodate different size tile specimen up to 100 x 100 cm. Direct reading of MOR value in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost. Detailed description as per the following pages.
ACCOMMODATES TILE SIZE
  • 300 X 300 MM
  • 600 X 600 MM
  • 1000 X 1000 MM
  • 1200 X 1200 MM
  • 800 X 1200 MM
FORCE CAPACITY
  • 500 KGF
  • 1000 KGF
Add to Cart
MOR TESTING MACHINE
Design Electro-Mechanical
Operation Quiet and Vibration free
Controlling System AC Variable Frequency Drive with AC Induction Motor
Load cell Capacity 1000 kgf (10 KN)
Least count for load 10 grams
Load resolution 0.01 kg
Test units KG, KN Selectable
Motor Speed Control Through AC Drive
Accuracy 0.2% of full scale
Can accommodate Maximum tile size of 1000 x 1000 mm (100 x 100 cm)
Display LCD Display
Construction Mild steel body
Paint Powder coating
Power Supply 230 volts, 50 hz, single phase, AC Supply
