MOHS HARDNESS TEST KIT - (BS 6431-13, EN ISO 10545-14)

MOHS HARDNESS TEST KIT - (BS 6431-13, EN ISO 10545-14)

MOHS HARDNESS TEST KIT - BS 6431-13, EN ISO 10545-14
Model No: None

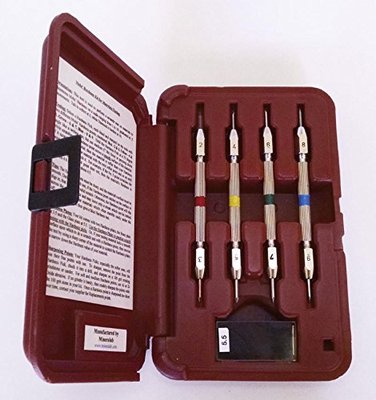

This set includes 8 Mohs' Hardness Points from Mohs' 2 through Mohs' 9, nicely mounted in nickel-plated Brass, color-coded, number-stamped, double-ended Pin Vises. Also includes two Hardness Plates of Mohs' 3.5 and 5.5, a 100x Sharpening Stone, along with laminated Instructions permanently affixed to inside of case, a Table of Industrial and other materials sorted by Mohs' Hardness, all compactly packaged in a molded Plastic carrying Case, designed for use in rugged workplace environments.

Compliance Standards

BS 6431-13, EN ISO 10545-14


Details of apparatus

  • This set includes 8 Mohs' Hardness Points from Mohs' 2 through Mohs' 9, nicely mounted in nickel-plated Brass, color-coded, number-stamped, double-ended Pin Vises. Also includes two Hardness Plates of Mohs' 3.5 and 5.5, a 100x Sharpening Stone, along with laminated Instructions permanently affixed to inside of case, a Table of Industrial and other materials sorted by Mohs' Hardness, all compactly packaged in a molded Plastic carrying Case, designed for use in rugged workplace environments.
  • The Hardness Points are made of Metals and Alloys of equivalent Mohs' Hardness as the mineral standards, so the points will not break off, and they can easily be re-sharpened, and ultimately replaced after many years. This beautiful and thoroughly conceived tool is made for the opposite of "planned obsolescence".
  • We especially configured it with customized components, Instructions, Hardness Tables, and Carrying Case for Industrial use.


What is included in the Mohs' Hardness Test Kit - Industrial version?

  • Four double-ended picks, color-coded, with eight points comprising 2,3,4,5,6,7,8, and 9 on Mohs’ hardness scale, as shown above.
  • Two Hardness Plates (of Mohs' hardness of 3.5 and 5.5)
  • A 100 grit Grinding Stone to keep the points sharp.
  • Rugged and compact molded Plastic Case.
  • Hardness Table for 80 common Materials.
  • Complete Instructions, customized for Industrial applications.





Overall Dimensions in Inches (L x W x H) 8 X 5 X 2
