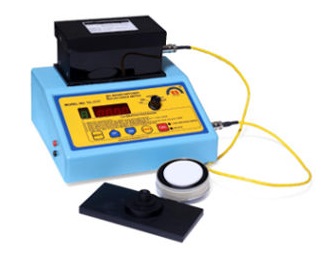

REFLECTANCE METER / WHITENESS METER-

Model No: TC-1177

Principles - Whiteness is property of Luminous Objects. Whiteness is measured in terms of diffuse Reflectance, which is the ratio of reflected light measured at 90° after passing through a suitable filter and the incident light that is generally at 45° to the surface of the sample. With 45° Diffuse Reflectance head with Tristimulus green filter for whiteness of sample OR with head for brightness measurement OR for opacity measurement. Detailed specification as follows: Unless otherwise specified the Instrument is supplied with Green filter for whiteness measurement. Blue and amber filters are available at extra cost. The filters are interchangeable by the user as per the application.

Salient Features:

Ideal for measuring whiteness & brightness
Same instrument can be used to measure Whiteness & Brightness by changing filters only
Standard MgCo3 block supplied with the instrument
Simple to operate
Instrument conforms to the basic requirement of IS : 101

Light Source	Long life LED / Tungsten Lamp
Detector	Sealed silicon photo detector
Diffuse Reflectance	00.0 to 100.00 with negative & over range indication,
Display	3.5 digit LED (With decimal display)
Accuracy	± 1 %
Accessories	MgCO3 block as a secondary standard, Power Trays, Pressure Plate, Dust Cover, Manual, Plate for MgO Depo., Mg wire, Blue or Green filter
Overall Dimensions	380 X 445 X 205(L X W X D) mm
Weight Net	5 Kg
Operating Voltage	230 V, 50 Hz, Single Phase, AC Power supply
