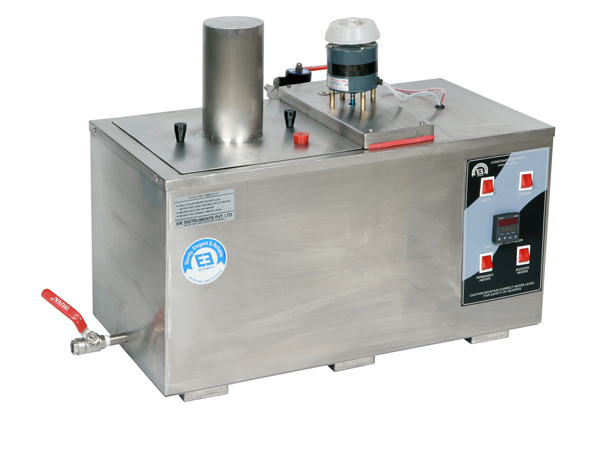

DETERMINATION OF MOISTURE EXPANSION USING BOILING WATER FOR UNGLAZED TILE-(BIS 13630-3, EN ISO 10545-10) WITH ACCESSORIES

DETERMINATION OF MOISTURE EXPANSION USING BOILING WATER FOR UNGLAZED TILE-(BIS 13630-3, EN ISO 10545-10) WITH ACCESSORIES

Model Number : TC-111A

None


Complies with International Standards:

EN ISO 10545-10, IS 13630 (Part-3)


Purpose:

For moisture expansion test of ceramic tiles. The tiles will be Immersed in boiling water for 24 h consecutively, ensuring that there is at least 50 mm height of water above and the test specimen do not touch each other or touch the base and sides.


Salient Features:

  • Double walled in construction
  • Inner chamber and lid made of mirror polished Stainless Steel material .
  • Exterior body is made of Mild steel material which is powder coated in attractive shades.
  • The gap between the inner chamber and exterior body is filled with high grade glass wool to minimize the thermal heat loss.
  • The heating mechanism comprises of set of heaters pertaining to fast heating
  • Supplied with stand made from strong S.S. rod to place ceramic tiles.
  • This stand will be removable.
  • The machine will also be supplied with direct reading gauge with a travel of 10 mm and an accuracy of at least 0.01 mm.
  • It will also be supplied with reference bars of the approximate lengths of the test specimens.
  • Vernier caliper of 300 mm and plastic dedicator of 300 mm diameter and one kg silica gel are the essential accessories to perform the test. Supplied at extra cost. See optional accessories.


NOTE :

ALSO NEED TO HAVE FURNACE TO COMPLETE THE TEST. THIS WILL BE SUPPLIED AT EXTRA COST.




Temperature Ranges

5 °C above ambient to 100 °C

Temperature Control

Auto-Tune PID Digital Temperature Indicator cum controller with an accuracy of + 0.5 °C.

Operates on

230 Volts, 50 Hz, Single Phase, AC Supply

Power Ratings

4 KW

Accommodate

7 no test specimens of 100 mm (L) X 35 (W) mm

Overall Dimensions

885 X 480 X 650 (L X W X D) mm
