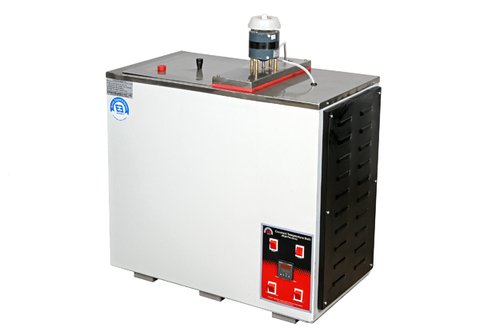

WATERBATH FOR WATER ABSORPTION TEST OF CERAMIC TILES

WATERBATH FOR WATER ABSORPTION TEST OF CERAMIC TILES

Model No:

Detail Specification as per following page. Can accommodate tiles sizes up to 300 x 300 mm.
TYPE OF METHOD
  • BOILING WATER METHOD
  • VACUUM METHOD
Add to Cart
WATERBATH FOR WATER ABSORPTION TEST OF CERAMIC TILE
Construction Double walled in construction
Inner chamber Mirror polished Stainless Steel material S.S. - 304 Grade
Exterior body Mild steel material
Paint Powder coated in attractive shades
Lid of the bath Matt finished Stainless Steel material S.S. - 304 Grade
Insulation Glass wool insulation for minimum heat loss
Temp Range 5 °C above ambient to 100 °C
Temp control Microprocessor based Auto-Tune PID Digital Temp Indicator cum controller
Temp, Accuracy ± 0.5 °C
Temp. Sensor PT-100 Sensor
Stirrer High speed stirrer for uniform temp distribution
Stirrer Motor Electric motor of 1/20 HP
MOC of Stirrer shaft Anti - corrosive Material
MOC of Propeller Anti - corrosive Material
Heating elements 04 KW
Can accommodate Test specimen up to 300 X 300 mm (AS PER BIS 13630-2 & ISO 10545-3 Standard)
Operation on 230 Volts, 50 Hz, Single Phase, AC Supply
Supplied with Vertical stand made from strong S.S. rod to place 20 x 20 cm ceramic tiles. Stand will be removable
None Stirrer is fitted on side of the bath, which allows obstruction free usage of working area.
Overall Dimensions 970 X 630 X 710(L X W X D) mm
