Job Application
Compliance Standards:
IP 170, IP 33, ISO 13736, IS : 1448 (P:20)
Applications:

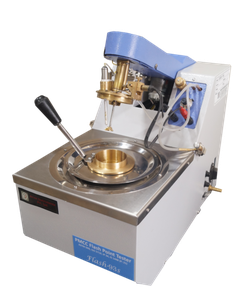

Used for determination of the closed cup Flash Point of Petroleum products, their mixtures, other liquids and paints having flash point between 10°C to 70°C. The Abel test is a method developed by the British chemist - Frederick Abel (1827–1902) to determine the flash point of a given sample of petroleum in order to ascertain the temperature at which it could safely be stored or used.

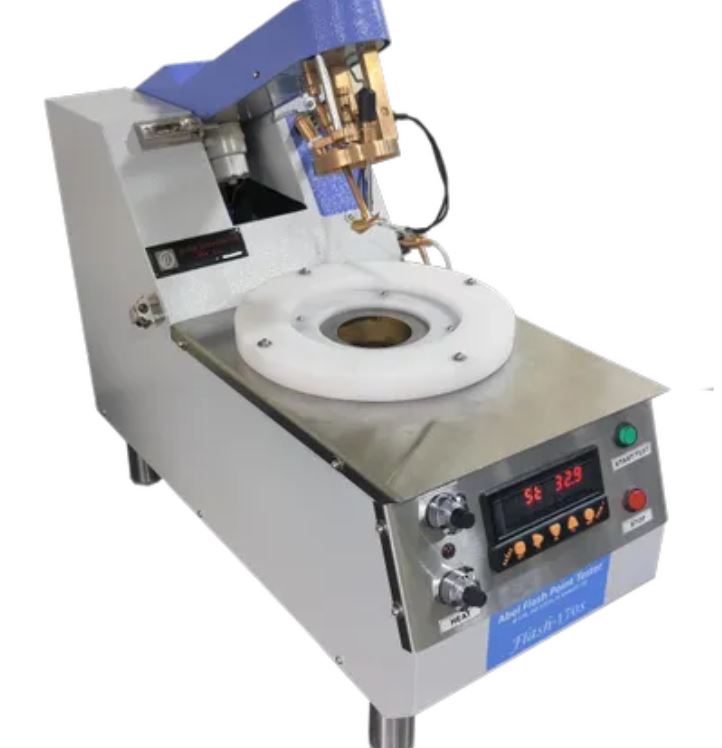

Salient Features:
- Semi automatic operation
- Single push button for stirring & heating operation
- Cooling is achieved by external circulating chiller
- User can test Frequent samples within 5-10 minutes of interval
- Electric igniter operating on 230 Volts, 50 Hz, Single Phase, AC Supply
- Automatic Flash Detection using thermal sensor
- Digital sample reading display with buzzer
- Sample Temperature reading is locked and displayed at Flash Point/Result
- Permanently fixed sample cup lid, stirrer, sample temperature sensor, flash detector with Heating & Cooling facility.
- Sample cup is removable
Standard accessories
- Main unit - 01 Nos
- Electric igniter - 02 Nos
- Sample Cup - 02 Nos
- Gas Igniter - 01 No
- Pilot Flame - 01 No
- Low pressure regulator with Tubing - 01 No
- Test certificate - 01 No
- Instruction manual - 01 No
|
Initialization |
Stirrer, Igniter & Igniter mechanism checked during Initialization |
|
Cooling |
In-out ports for external circulating chiller |
|
Heating elements |
Band Heater of 300 watts ratings, @ 230 VAC |
|
Heat rate control |
Heat rate control with precise ten turn potentiometer |
|
Temperature Range |
-10°C to 110 °C |
|
Stirring |
Speed Control by Precise Potentiometer from 10 to 60 rpm |
|
Ignition |
Electric / Gas Igniter interchangeable |
|
Electric Igniter - 04 Step brightness |
|
|
Gas igniter - - Precise control for pilot flame & gas igniter |
|
|
Test Mode |
Auto & Manual both mode (Auto test during specified range / Manual test with single push button) |
|
Stirring & Heating stops with electric igniter lightning, dipping and resume the Stirring & heating operation again for next temp point |
|
|
If Flash detects, cooling signal gets ON for external Chiller |
|
|
Lid assembly |
Permanently fixed sample cup lid, Stirrer, sample temperature sensor, Flash Detector and Igniter for easy operation |
|
Measurement |
|
|
Sample temperature |
Glass PT 100 , Class A, with digital indication / Thermometer interchangeable |
|
Flash detection |
Ionization Ring and Buzzer (Sample temperature reading gets lock with Flash Point heading) |
|
Error LL if flash at first test and Error HH if flash out of range |
|
|
Housing dimensions |
|
|
Dimension Main Unit |
220 mm x 500 mm x 320 mm (W x D x H) |
|
Weight Main Unit |
17 Kgs |
|
Power Supply |
230 Volts, 60 hz, Single Phase, AC Supply |
