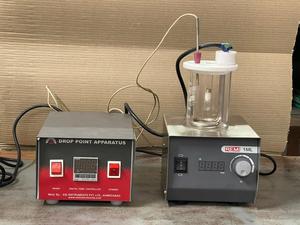

DROP POINT APPARATUS FOR GREASE-ASTM D566, IP132- FULLY AUTOMATIC

Compliance with following International Standards:

ASTM D566, IP 132, ISO 2176

Purpose:

This test method covers the determination of the dropping point of lubricating grease. This test method is not recommended for use at bath temperatures above 288°C.

Significance & Use:

In general, the dropping point is the temperature at which the grease passes from a semisolid to a liquid state under the conditions of test. This change in state is typical of greases containing as thickeners soaps of conventional types. This test method is useful to assist in identifying the grease as to type and for establishing and maintaining bench marks for quality control.

Apparatus Details:

The complete test assembly consists of following parts & accessories

1) Grease Cup:

1. A chromium-plated brass cup conforming to ASTM Standard D566

2) Test Tube:

1. A test tube of heat-resistant glass with rim,
2. 100 to 103 mm in length
3. 11.1 to 12.7 mm in inside diameter
4. Provided with three indentations about 19 mm from the bottom, equally spaced on the circumference.

3) Thermometers:

1. Temperature range    : -5 to 300 C
2. Thermometer Number : ASTM 2C / IP 62C

4) Cork for test tube:

1. Cover for test tube

5) Brass rod (Metal Rod):

1. 1.2 - 1.6 mm in diameter
2. 150 - 152 mm in length

6) Heating device (Magnetic Stirrer With Heater):

1. Totally enclosed unit
2. Easy to use & clean
3. Designed for use even in corrosive atmosphere
4. Fully automatic heating cum magnetic stirring device with sample detecting sensor
5. Touch screen HMI & Programmable PLC Controller
6. Fully guided and automated on screen instructions
7. Last 10 readings can be stored and viewed in the touch screen controller
8. Saved reading can be transferred to computer in excel file through USB port.
9. Better speed regulation even with small volume and low speeds
10. Accurate stepless speed control THROUGH HMI Touch Screen maintains excellent speed stability.
11. Consist of 400 ml glass beaker as oil bath
12. Beaker is placed on the top surface of the magnetic stirrer and bath temperature is raised to 17°C below the expected drop point of grease.
13. Supplied with PTFE coated stirring paddle 9 X 25 mm
14. Temperature Accuracy         : ± 1 °C
15. Sample Stirring Capacity     : Max Volume 1000 Ml (Water)
16. Max. Stirring speed             : 1200 RPM
17. Heating Surface Plate Dim  : 135mm X 135mm
18. Heating plate material         : Stainless Steel
19. Max Temperature Range     : 400° C
20. Power Requirements            : 220 Volt, 50 Hz, Single Phase, AC Power supply
