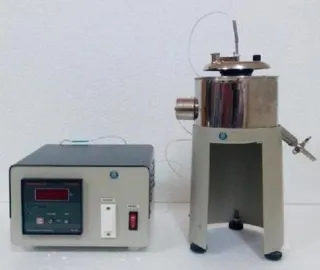

REDWOOD VISCOMETER NO.1 WITH MOTORIZED STIRRER-WITHOUT DIGITAL TEMP. INDICATOR

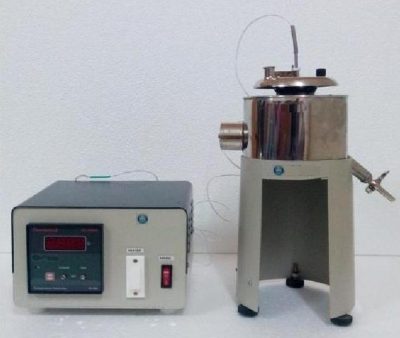

DIGITAL REDWOOD VISCOMETER NO.1

The Redwood Viscometer is used to determine the kinematic viscosity of petroleum products and other liquid fuels. It measures the time taken for a fixed volume of liquid to flow through a calibrated orifice at a specific temperature. The test is widely used in quality control and classification of lubricating oils and fuel oils


Advanced model with with Electronic Digital Indicator and Controller & FHP Motor Stirrer with Lighting Arrangement. AS PER IP‑70 & IS 1448 This viscometer is designed for viscosity tests of petroleum Products . No. 1 for liquids having Red Wood flow 20 seconds to 2000 seconds. Electrically Heated With Digital Indicator and Regulator. The Redwood No.1 complete out fit comprises Stainless steel bath with electrical heating arrangement suitable to operate at 220 Volts AC Mains with tap, oil cup with precision stainless steel jet, cup cover, ball valve, thermometer-clip. Stirrer and stand. IP or ASTM standard Glass Thermometers, Flask receiver, Digital stop watch and spares available at extra cost.


Calibration certificate at extra cost, price on request

Overall Dimensions in Inches (L x W x H)

16.1 x 11.8 x 21.2

Weight (Approx.)

8.1 kg
