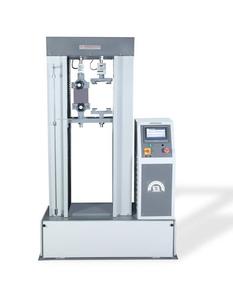

UNIVERSAL TESTING MACHINE FOR PLYWOOD - IS 1734

IS : 1734 - PART - 9/ASTM D3500/EN 789

Introduction:

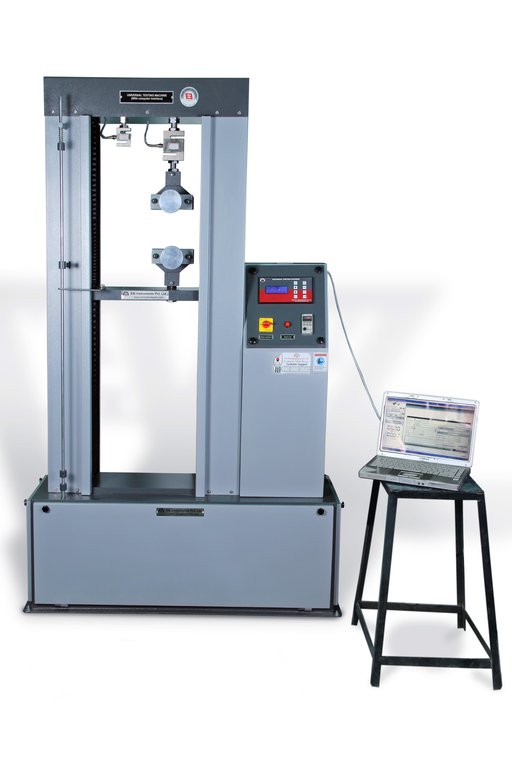

Computerized  Tensile testing machine capacity 0‑2500 Kgf (25 KN) (25000 N) with software program and built‑in ball screw operated through precisely controlled SERVO MOTOR & SERVO FEEDBACK LOOP SYSTEM with SERVO DRIVE (for speed variation from  0.01mm/min to 500mm/min) with encoder to measure the elongation. Complete with with one pair of grip for Tensile Test.

Salient Features:

1. Floor standing model
2. Aesthetic outer appearance
3. Unique and compact design features
4. Fitted with Highly précised combination of PLC & HMI System, Servo Motor and Drive System
5. Computer interfacing through RS‑232 USB cable
6. Equipped with Ball screw for friction less traverse
7. Rotary encoder to obtain high accuracy in elongation measurement
8. SERVO MOTOR & DRIVE for various combination of speed variation as per following
9. High Torque at very Low Speed
10. High Torque at High Speed
11. Calibration of entire Machine at Very Low Speed
12. Easy to use display unit and software
13. On screen display of Maximum Load, Breaking Load, Yield Load, Elongation, and speed variations
14. On screen Display of load v/s elongation  (stress v/s strain) graph also get a excel sheet with a single click
15. Supplied complete with PLC main unit, 7” colour touch HMI, Single Channel Load cell measurement module, PLC to HMI Communication cable and Dedicated SERVO Gear Box.
16. Supplied complete with One Grip for the tensile test.
17. Dumblell cutting die (Type A, B, C, D, E) available at extra cost

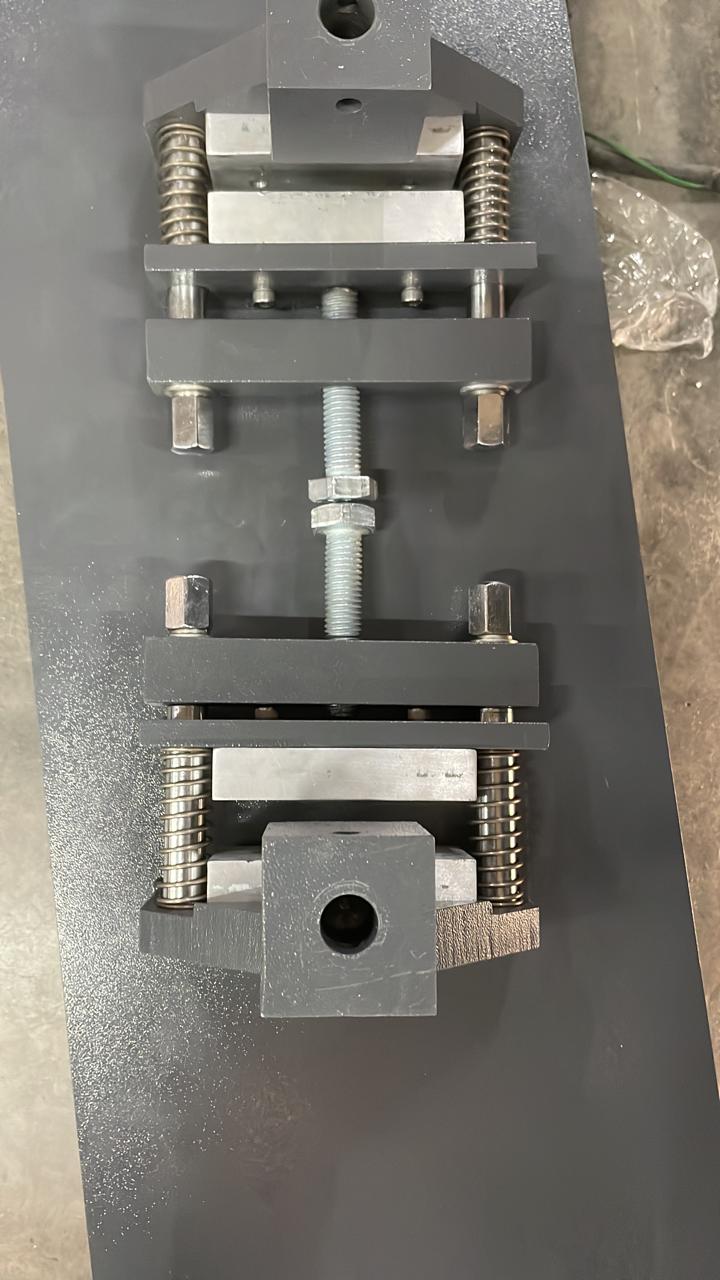

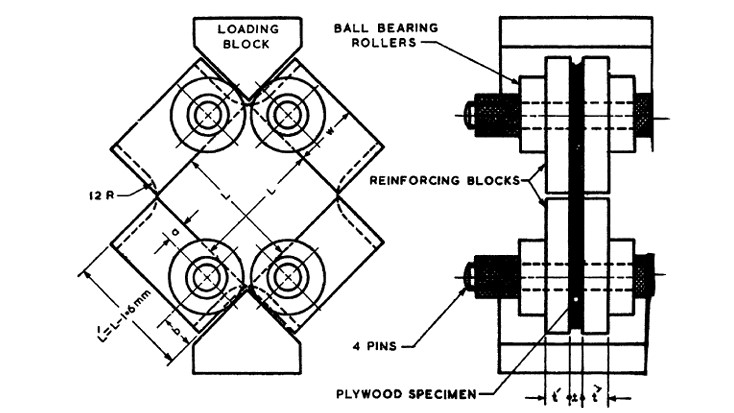

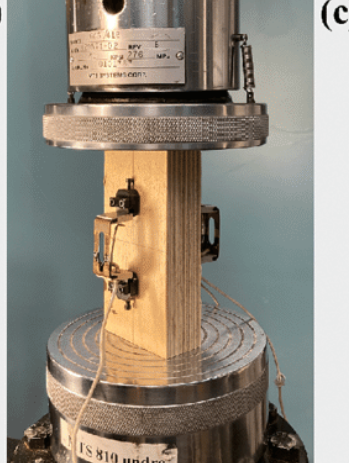

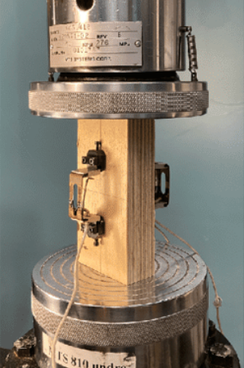

18. Attachment for Panel shear strength test, Plate Shear strength test, Compressive strength test, Static bending test, Central loading of plate test, Gle shear test available at extra cost and offered separately

Protection

1. Overload protection for load cell
2. Over travel of traversing crosshead in both direction
3. Automatic stopping and return of cross head at original position immediately on breakage/Failure of specimen
4. Higher traverse speed
5. Emergency Manual switch for stopping the machine

 Software facility:

1. Specially designed Windows based Graphical Dedicated Software
2. RS 232 interface with WINDOW based software to conduct the test  directly from software itself
3. Can store generated data with corresponding graph
4. Can also store  Yield Load, Yield Extension, Break Load, Break Extension, Max load and Modulus of Elasticity
5. User can export the generated data in various file formats such as i.e. Excel, PDF etc
6. Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
7. User can change the design of generated graphs i.e. Line, Doted line, etc facility in graph
8. Graph Grids color combination facility
9. Graph zooming facility
10. Individual graph comparison facility
11. Graph overlapping facility for analysis of material property
12. Auto scaling facility
13. Company logo insertion facility
14. Software can run various tests and can recall data for any test conducted the in history. (If Saved)
15. Software is Menu Driven for easy navigation.
16. Test reports and graphs directly printed on terminal printer through direct print commands
17. Data and Result Units Selectable
18. User can operate the machine directly from the software itself
