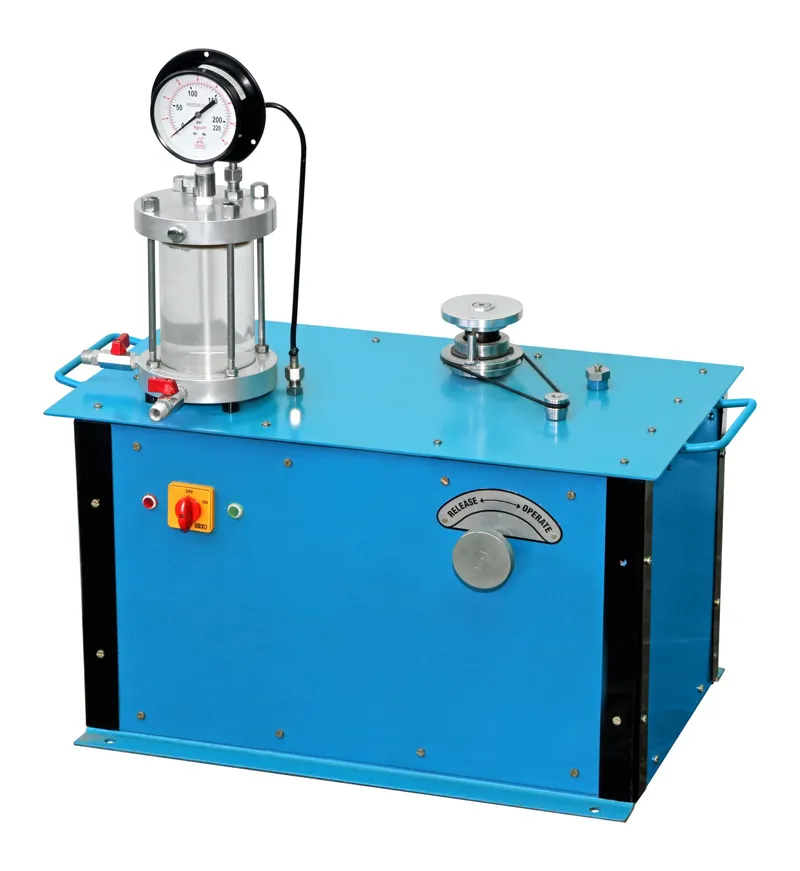

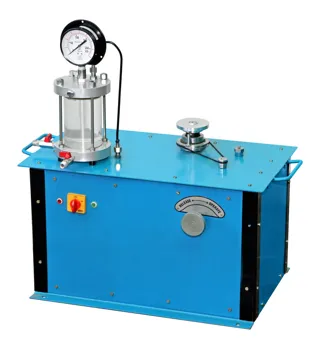

CONSTANT PRESSURE SYSTEM - (OIL WATER)

Model Number : TM-179

A constant pressure system in triaxial testing is a crucial component designed to apply and maintain constant pressure to the specimen, typically confining pressure (cell pressure) or back pressure, during the test. As per IS:2720(Part-11)

More Information
Techincal Specification

The system is used to control and maintain a precise confining pressure on the sample within the triaxial cell. This is essential for simulating the stress conditions the soil or rock would experience in situ. The confining pressure is applied equally in all directions to the specimen, while the axial stress is independently applied.

Range 0-20 bar (20 kg/Cm²), steps of pressure 0.5 bar (0.5 Kg/Cm²), Accuracy + 0.5%, Supplied complete with pressure gauge, flow valves and connecting pressure hose. The unit provides continuous variable pressure up to 0-20 kg/Cm². Pressure is increased or decreased simply by turning a control knob. Electric Supply 230 Volt, Single phase, 50 Hz, A.C Supply.

In place of Oil/water, an Air/Water Interface System to control the pressure is also available

Range	0-20 bar (0-20 Kg/Cm²)
Steps of pressure	0.5 bar (0.5 Kg/Cm²)
Accuracy	± 0.5%
Power Supply	230 Volt, Single phase, 50 Hz, A.C Supply.
Overall Dimensions	690 X 390 X 690 (L X W X D) mm
Weight (Approx)	50 kg
