DIRECT READING GSM BALANCE-GRAMMAGE TESTER

Compliance Standards:

ASTM D3776, ASTM D5261, IS 14716

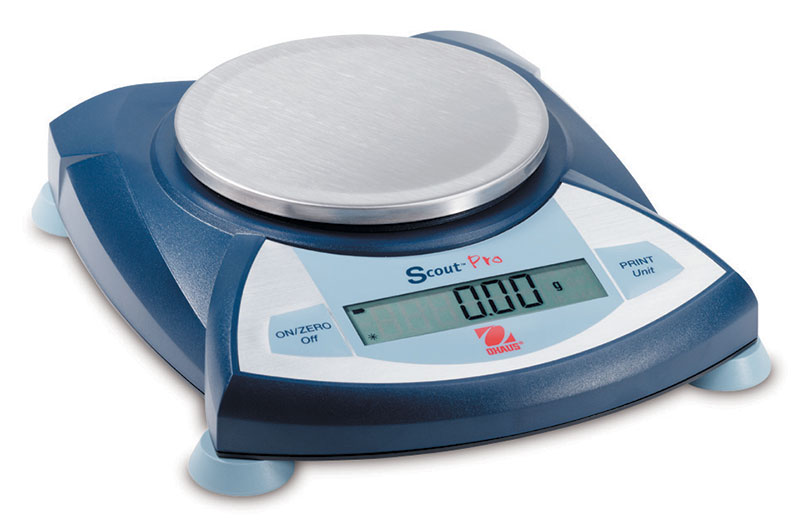

ELECTRONIC GRAMMAGE TESTER (Microcontroller Based):

Digital Quadrant Scale is intended for measuring the GSM of paper and other sheet materials by weighing a small test sample with given dimensions. The GSM of the specimen is being Displayed directly on Digital Panel

1. Meter with accuracy 0.1 GSM.
2. Measuring range : 0‑200 gm/m²

Salient Features:

1. Covered with Transparent Shield

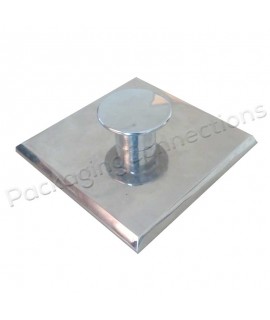

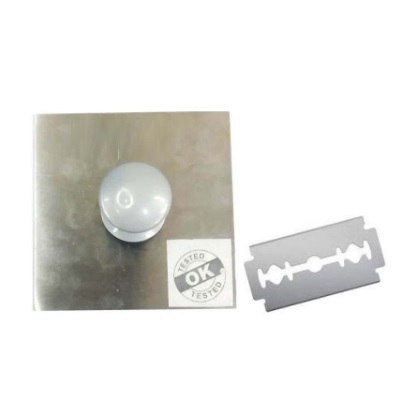

2. Stainless Steel tearing templates.
3. Digital GSM Scale display direct weight in GSM in two range : 10 X 10 cm Templates (Template supplied at extra cost)
4. Weigh up to 0‑200 gm with accuracy 0.001 gm.
5. Platform Size‑ 90 mm Dia.
6. RS 232 interface available at extra cost
