UNCONFINED COMPRESSION TESTER FOR ROCK - DIGITAL MOTORIZED 500 KN - AS PER IS 9143

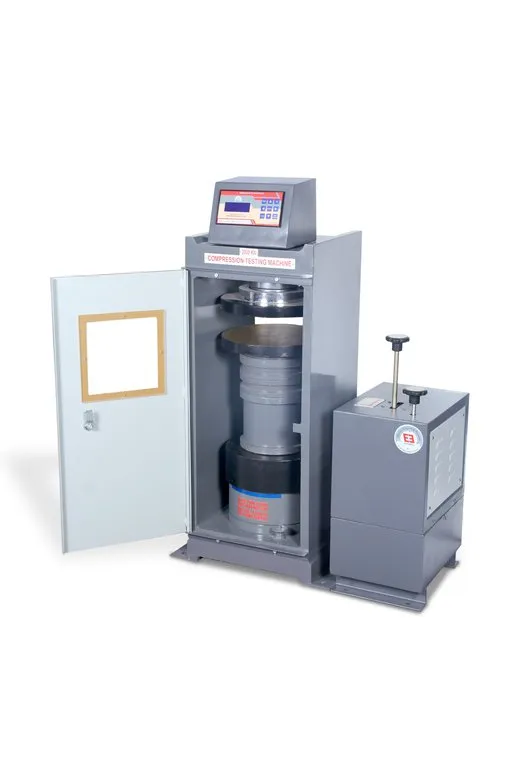

DIGITAL UNCONFINED COMPRESSION TESTER FOR ROCK - IS 9143

The test provides critical input for geotechnical design, rock engineering, and mining operations by quantifying the rock's load-bearing capacity. Capacity available 500KN. Consist of a Load frame and a motorized pumping with digital load indication. Platens as per ASTM 2938 available at extra cost. As per IS:9143/ ASTM D7012/ ASTM D2938/BS EN 1926.


Introduction:

  1. The digital UCS testing machine has been designed to meet the need for a simple, economic and reliable means to test ROCK for its unconfined compressive strength
  2. The design expressive of simplicity, both of construction and operation, makes the machine easy to use and maintain.
  3. The digital machines are provided with a MANUAL pace rate controller, to enable maintain a constant rate of loading. Machine with Automatic Pace Rate control also available.

Salient Features of EIE ‑ Digital UCS Machine:

  1. 2 line Alphanumeric display with backlite, displaying ‑ Actual Load / Peak load, Rate of loading and Calculated load in N/mm² (as soon as sample fails)
  2. Four column high stiffness and high stability fully welded construction of the load frame.
  3. Direct reading of compressive strength in N/mm2 ‑No calculation required.
  4. Peak hold facility.
  5. Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
  6. Pace rate indication in KN/Sec.
  7. Bar Graph indication to control the pace rate
  8. Built in memory for last 10 readings
  9. Automatic internal calibration(without Proving ring)
  10. Safety cut out for overload and electrical short circuit.
  11. Safety door on the front side for operator safety.
  12. Compact Pumping unit with manually variable rate of loading. Automatic pace rate controlled machine also available.

Scope of supply:

  1. High strength rigid structure (Loading Frame)
  2. Pumping unit (Oil source cabinet)
  3. Digital Load indicator
  4. High precision pressure transmitter
  5. Pair of compression platens
  6. High pressure hose pipe

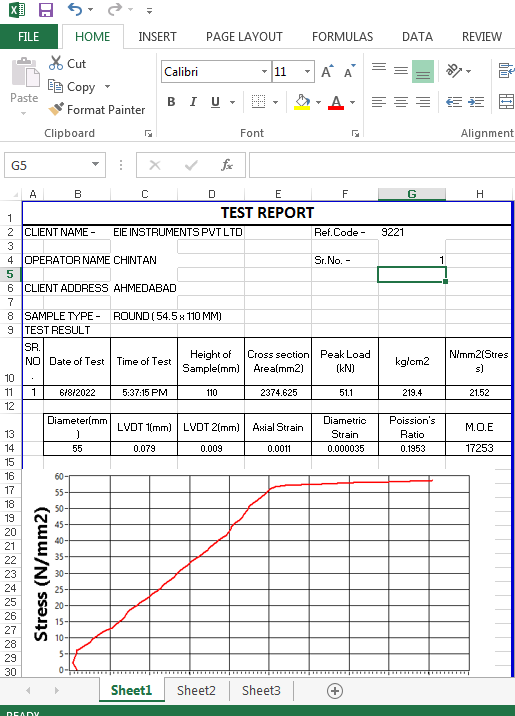

Salient features of data manager PC software (Optional)

  1. Two way communication i.e. machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  2. Results directly saved in excel file
  3. Graph also saved in excel file
  4. Capable to save customer name, other details of customer, ageing of Rock samples, identification mark of the Rock samples, date and time of testing
  5. Capable to print direct report from the computer
  6. Capable to select different test parameters like pace rate, sample size and area from the computer (software)


Note :

Core cutting and grinding equipment, Electronic extensometer for MOE measuerement and computerized data acquisition system for recording load and deformation during testing can be supplied on request

Capacity

500 Kn

Platen size in mm

160 mm Dia

Ram Dia in mm

120 mm

Ram Travel in mm

50 mm

Vertical daylight in mm

230 mm

Horizontal daylight in mm

230 mm

Platen hardness

More than 550 Vickers hardness

Electric Motor

1 HP, Single Phase

Operation on

220 V AC Single Phase

Least count

0.01 KN

Pace rate control

Manual control from 1 KN/Sec to 20 KN/sec

Overall Dimensions

660 X 870 X 820 (L X W X D) mm

Weight approx in kg

262 Kg.
