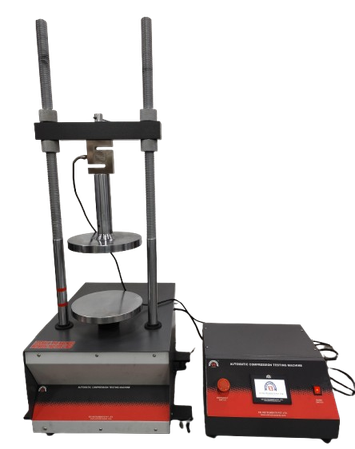

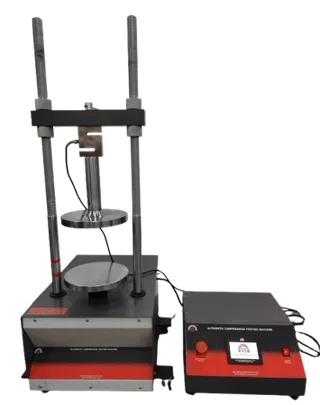

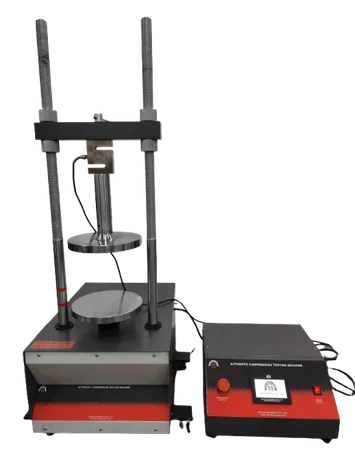

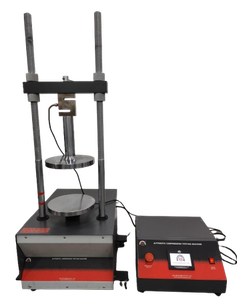

COLD CRUSHING STRENGTH APPARATUS - (ISO 4700, ASTM E382)

The CCS test evaluates the material’s strength under a controlled compressive load, providing information on its durability and resistance to mechanical stress during use. The test involves applying a steadily increasing force until the material fails, recording the peak force (in MPa or N) just before crushing occurs. Determination of Cold Crushing Strength (CCS) of iron Ore pellet fired at different temperature. This machine is mainly used in crushing strength test for iron ore pellet. As per ISO 4700:2015 • IS 8625 : 1986 • ASTM - E382-20

More Information

Main technical specification of Cold Crushing Strength (CCS) testing machine: .

Fully computerized (auto stop after failure of the sample) (Supplied without PC)
Max. test force: 10 kN.
Least count : 0.001 kN.
Measuring range of test force: 0.1-10 KN.
Accuracy of test force: ± 1%.
Load indicator with facilities for displaying peak load value..
Speed Range 01 mm/min - 50 mm/min. with cross head speed indicator.
Holds peak load at the failure point
Kg and kN unit selectable
4" touch screen display
Precision Ball Screw drive system.
Designed for testing CCS strength according to international standards.
Suitable for operation on 220V, 50Hz, 1 Phase AC supply.
As per ISO 4700:2015 • IS 8625 : 1986 • ASTM - E382-20
