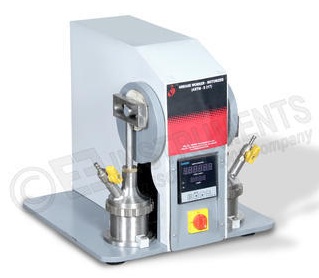

GREASE WORKER

GREASE WORKER

Model Number : EIE-PTGT-129M1

Cone penetration test results provide one measure of the consistency of Grease. With the help of the grease worker, the worked penetration results are determined. These worked penetration results are required to determine to which NLGI Consistency grade a grease belongs. Undisturbed penetration results provide means of evaluating the effect of storage conditions on grease consistency. As per ASTM D217, ASTM D4950, IP 50


TYPE OF OPERATION
  • HAND OPERATED
  • MOTORIZED
NO. OF GREASE CUPS
  • SINGLE CUP
  • DOUBLE CUPS
Add to Cart
GREASE WORKER

Worker Plate

51 x 1/4 inch holes (Optional Churn Plate 270 x 1/16 inch holes)

Grease Pot

1 x Brass (Optional Stainless Steel)

Voltage

220/240V, 50 Hz, Single Phase, AC Supply

Power Supply

450 Watt

Size

(46 x 370 x 50) cm(H x W x D)

Weight

38 kg

Overall Dimensions

520 x 500 x 550 ( L X W X H ) MM
Recommended
item.website_item_name

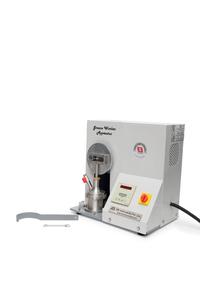

Motorized Single Cup Grease Worker - ASTM D217
