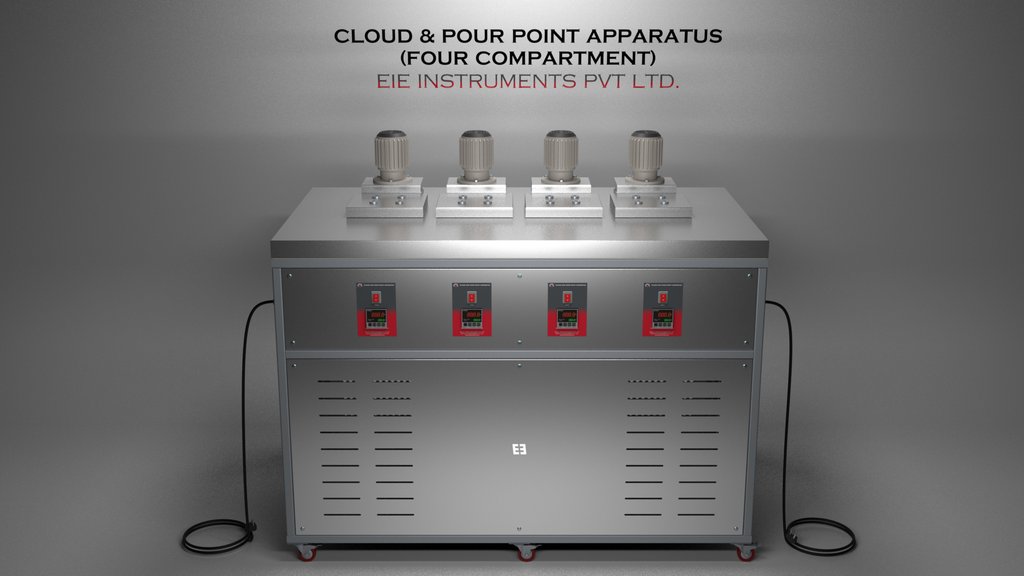

CLOUD AND POUR POINT APPARATUS-(REFRIGERATED)-(FOUR COMPARTMENT)-(WITH INDIVIDUAL CONTROLLER)

Compliance with following International Standards:

IP 15, ASTM D97, ASTM D2500

Salient Features:

• 4 Tanks x with 4 Test positions per tank, Making total no of 16 Test Positions
• With individual digital temperature indicator and individual on off switch for each compartment (For 4 Test positions)
• With 4 preset temperatures of  0 °C,  -17 °C,  -34 °C, and - 51 °C.
• Including 16 sets of jackets, jars, disks, gaskets & corks.
• Complete with Test Certificate

Technical Specifications:

• Floor Model, equipped with heavy duty castor wheels for easy movements.
• Built in CFC Free refrigeration system with EMERSON make compressors.
• Fin and tube type air cooled condenser.
• Lowest temperature  51°C attaining by CFC free cascade refrigeration system.
• Digital Temperature Indicator cum controller with PT 100 sensor, 0.1°C resolution with accuracy of ± 1°C
• Inner tank made of polished 304 grade stainless steel.
• Outer body made of Mild Steel Powder coated in attractive shades.
• Top sheet made of PVC sheet with acrylic lids.
• PUF Insulation
• Facility for drain for each bath
• Suitable for operation on 230 Volt, 50 Hz, Single Phase, AC Supply.

Following accessories will be the part of supply :

1. Test Jars : (16 Nos) Cylindrical of Borosil make, Flat bottom with 33.2  34.8 mm outside diameter and 112 125 Ht. The inside diameter of jar can range from 30.0 to 32.4 mm within constraint that the wall thickness be no greater than 1.6 mm. The jar to have a line to indicate a sample height of 54 ± 3 mm above inside bottom
2. Thermometer: IP 1C (04 Nos) JRM make will be provided with certificate from NABL certified lab.
3. Silicon Corks : 16 Nos of corks to fit the Test Jar, bored centrally for test thermometer
4. Jacket : (2.5 mm thick)  16 Nos water tight, cylindrical, metal flat bottom 115 ± 3mm depth with inside diameter of 44.2 mm to 45.8 mm. It will be supported in a vertical position in the cooling bath, so that not more than 25mm projects out of the medium and will be capable of being cleaned.
5. Discs : 16 Nos of 5 mm thick to fit loosely inside the jacket
6. O Rings : Silicon "O" Rings with appropriate dimensions (16 Nos) will be provide
7. Stop watch : 2 Nos calibrated by NABL certified lab

Note : Suitable Bath media to operate the Instrument at sub zero temp. has to be arranged by the user.
