Compliance Standards
IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3

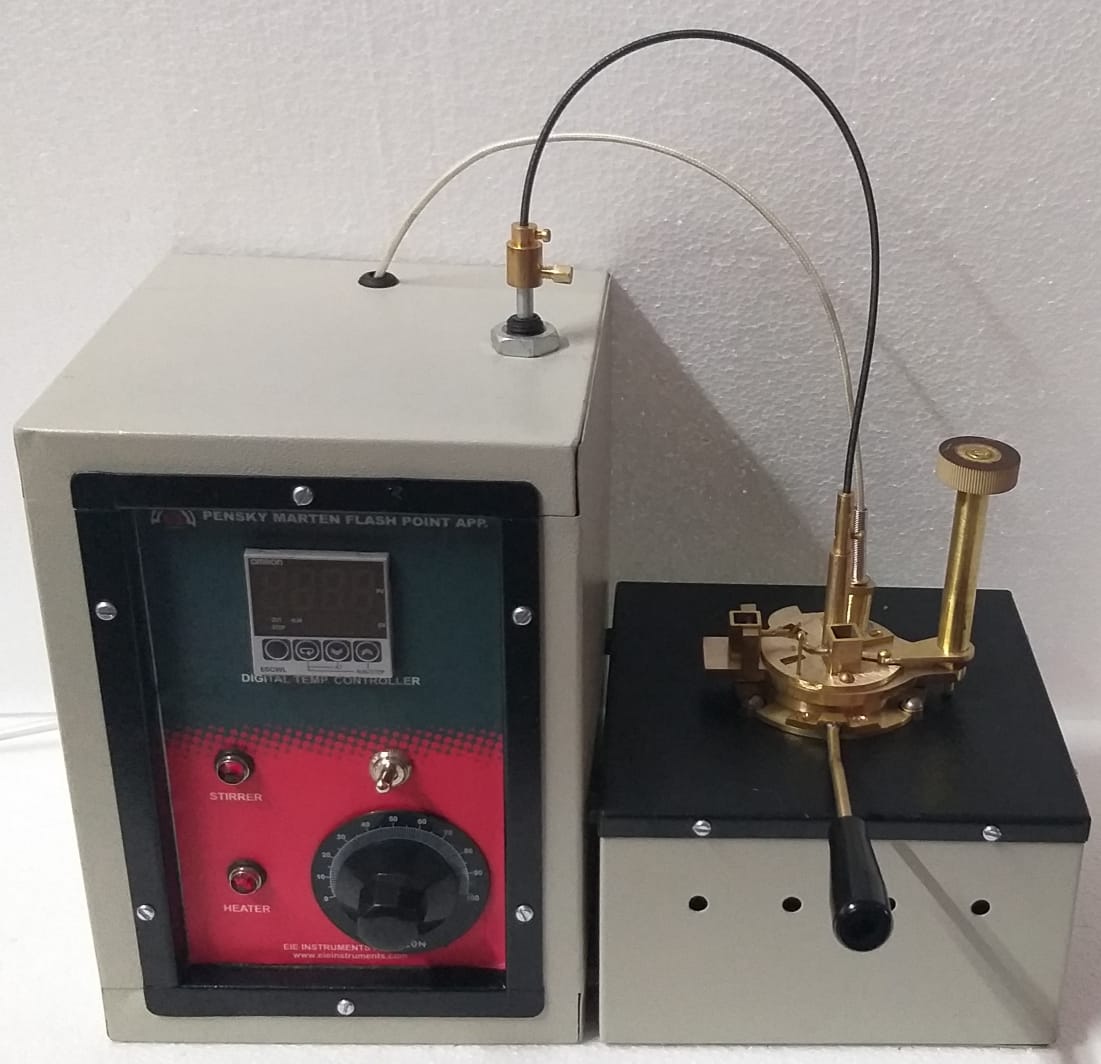

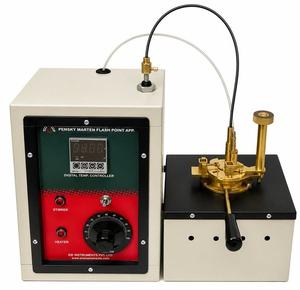

Apparatus Details:
- The complete assembly consists of following parts and accessories
- Brass test cup with handles
- Removable cup cover with spring operated rotating shutter having Oil Test Jet
- Constant speed motorized stirrer with flexible shaft.
- The assembly rests in air bath, which is covered with flat shape metal top
- The cup is fitted with insulated handle and locking arrangement near cup flange.
- Fitted with electronic Digital temperature indicator and energy regulator control
- Suitable for operation on 220 Volts 50 cycles AC circuits.
- These test methods cover the determination of the flash point of petroleum products in the temperature range from 40 to 360° C by a manual Pensky Martens Closed Cup Apparatus.
At extra cost
- The Instrument can be supplied with open clip for converting close cup model to open cup model as per IP:35 at extra cost.
- IP Thermometer No. 15C and 16C available at extra cost
Click here for working video : https://www.youtube.com/watch?v=PR7q4-ilENA
Overall Dimensions in Inches (L x W x H) |
15 x 11.8 x 11.4 |
Net weight (in kg) |
7.5 kg |
