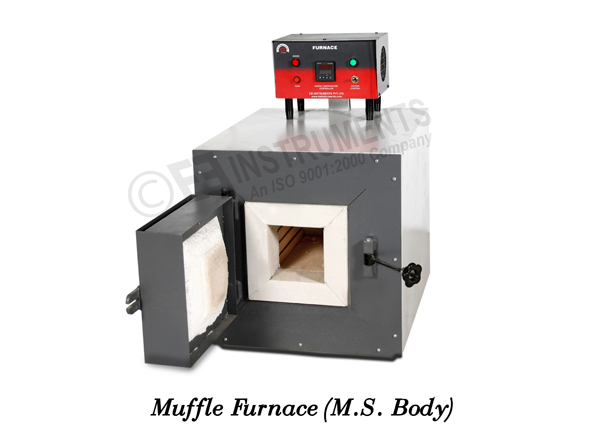

MUFFLE FURNACE - 18" X 9" X 9"-900°C

Model Number : EIE-107DP23

The Outer chamber of CRC sheet duly powder coated. , heating chamber consists of rectangular horizontal totally enclosed Muffle bracket, Heating elements are made of Nichrome/Kanthal wire, wounded externally on the muffle. Temperature controlled by Dual display microprocessor based Digital temperature indicator cum controller with K type sensor. Max. Temperature: 900 °C. & working Temp.: 850 °C , Working on 230V.

Salient Features

Horizontal Design
Front loading type
Improved model
Ceramic fiber wool insulation instead of brick insulation
Ceramic fiber wool insulation results in weight and size reduction of furnace
The weight and size of the furnace is 1/4th times and 30% lesser respectively as compared to brick furnace.
The heat up time is less
Heat loss is very low‑resulting in power saving

Vent Port

Built in vent port for removal of noxious gases etc preferably with a provision of connecting the extension pipe with vent lid should be air tight for Volatile Matter analysis.

Calibration port

Provision of hole with cover will be provided in the furnace door for putting temperature sensor for calibration of equipment

Standard Fittings supplied with the instrument

Compensating cable
Indicating lamps
Indian Standard Power plug & cord

Note:

Silica Crucible with Lid / Quartz Crucible with Lid / Platinum Crucible with Lid / Crucible tong / Protective thermal hand gloves and Electronic Weighing Balance (0.1 mg or 1 mg sensitivity) are available at extra cost. Price on request.

Inner working size	18" x 9" x 9" (450 mm D x 225 mm W x 225 mm H)
Chamber volume	23 liters
Construction	Exterior body made of Mild Steel Material, powder coated
Working Temperature	850°C
Maximum Temperature	900°C
Temperature Accuracy	± 5 °C
Temperature Resolution	1°C

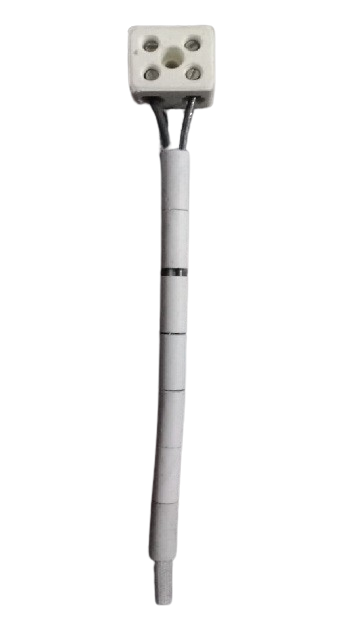

Temperature sensor	K - type sensor
Temperature Control	Dual display microprocessor based Digital temperature indicator cum controller
Insulation	Ceramic fiber wool insulation
Power Consumption	6.0 KW
Heating	KANTHAL A 1 wire in coil form placed in the Elements ribs & easily replaceable
Circuit Wiring	As per CE Norms
Overall Dimensions	660 X 1010 X 890(L X W X D) mm
Weight (Approx.)	183 Kg
Power Supply	220/230 Volts, Single phase, AC Supply
Standard Supply	Cord Wire 2.5 meter Long
	Power Plug
Optional fittings at extra cost	Software

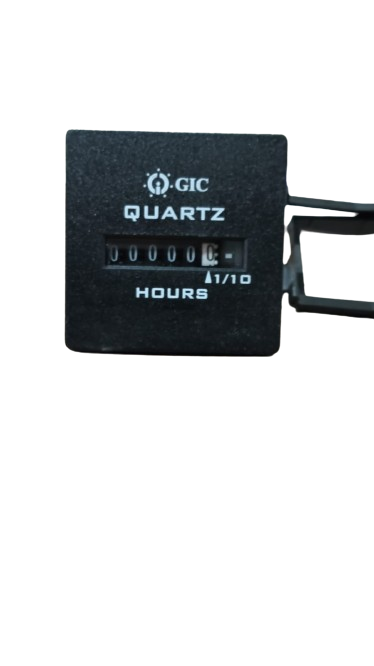

	Hour meter
	Digital Timer
	Over Temp Protection System - with Audio Alarm
